Description

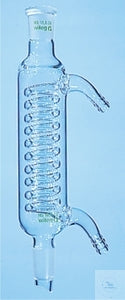

Graham condenser cone + socket NS 24/29, 250 mm is a laboratory intensive condenser built according to DIN 12592 for efficient vapour cooling in distillation and reflux setups. It features a cone and socket joint NS 24/29 together with a jacket length of 250 mm, providing an extended cooling path that promotes thorough condensation. The Graham coil design maximises surface contact between vapour and coolant, supporting high condensation efficiency in preparative and analytical work. Supplied as a pack of two pieces from manufacturer Witeg, each unit has a net weight of 0,31 kg and a matching gross weight of 0,31 kg. This condenser integrates readily into standard ground-joint glassware assemblies used in organic synthesis, solvent recovery and purification procedures. Its robust construction and defined geometry make it a practical choice for research laboratories and teaching environments that require reliable, reproducible cooling performance during continuous distillation or reflux operations.
This article is part of Condensers, in Distillation & extraction glassware.
Key features
- Pack size: 2 pc(s)
- Type: Graham condenser
- Standard: DIN 12592
- Joint: Cone and socket NS 24/29
- Jacket length: 250 mm
Recently viewed
You may also like
Questions about Graham-condensers, acc. to DIN 12592, co
What is this article?
Graham-condensers, acc. to DIN 12592, co is the article on this page. Luminix Health distributes Witeg for laboratory use. It sits in Condensers, inside Distillation & extraction glassware, in Labware.
A condenser turns vapour back to liquid. A Liebig is a straight jacket. A coil packs more surface into a short height. A cold finger cools from the inside. The water connections and the joint size are the practical specification, together with the cooled length.
Distillation separates liquids by boiling point. A condenser turns the vapour back into liquid: Liebig, coil and cold-finger shapes differ in how much cooling surface they offer. A still head and a column sit between the flask and the condenser. A Soxhlet extractor washes a solid again and again with the same solvent. Ground joints have a standard size, and the joint, not the flask, is what has to match. The pieces are indexed under ISO laboratory glassware.
