Description

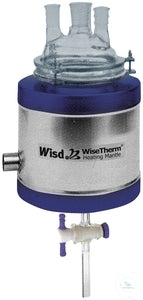

Cased heating mantle WHM for reaction vessels 0,5 L is a laboratory heating mantle intended for 500 ml cylindrical reaction vessels fitted with a bottom outlet. It has an outer diameter of 200 mm and a height of 140 mm, matching compact reaction glassware used in preparative and process work. The mantle reaches temperatures up to 450 °C at a power rating of 240 W and connects to a 230 V supply. Constructed with an aluminium housing and supplied without a built-in power controller, it permits flexible external control of heating output. This WHM unit from manufacturer Witeg is well suited to controlled heating of medium-scale cylindrical vessels with bottom drain in synthesis and routine laboratory applications. Supplied as one piece, the aluminium casing combines mechanical stability with efficient heat transfer to the vessel wall, supporting reproducible thermal conditions on the bench without integrated power regulation.
This article is part of Heating mantles, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Vessel capacity: 500 ml
- Vessel type: Cylindrical with bottom outlet
- Outer diameter: 200 mm
- Height: 140 mm
- Power rating: 240 W
- Technical Information Sheet:
Recently viewed
You may also like
Browse related categories
Category
Sub-category
Catalogue
Brand
Questions about Heating Mantles for reaction vessel 0,5L
What is this article?
Heating Mantles for reaction vessel 0,5L is the article on this page. Luminix Health distributes Witeg for laboratory use. It sits in Heating mantles, inside Heating, drying & cooling, in Lab instruments.
A heating mantle cups a round-bottom flask so the heat meets the glass without a bare flame. The flask volume the mantle was knitted for is the specification. A 1 L mantle under a 250 mL flask heats the air, not the liquid.
Temperature equipment either holds a set point or drives a sample toward one. An oven dries. A furnace reaches the temperatures of ashing and melting. A bath surrounds a vessel with water or oil. A circulator moves that fluid. An incubator holds the mild warmth of a culture. An autoclave uses steam under pressure to sterilise. The number that matters is the temperature the article actually reaches, not the number painted on the dial. Temperature is part of the international system kept by the BIPM and compared by EURAMET.
