Description

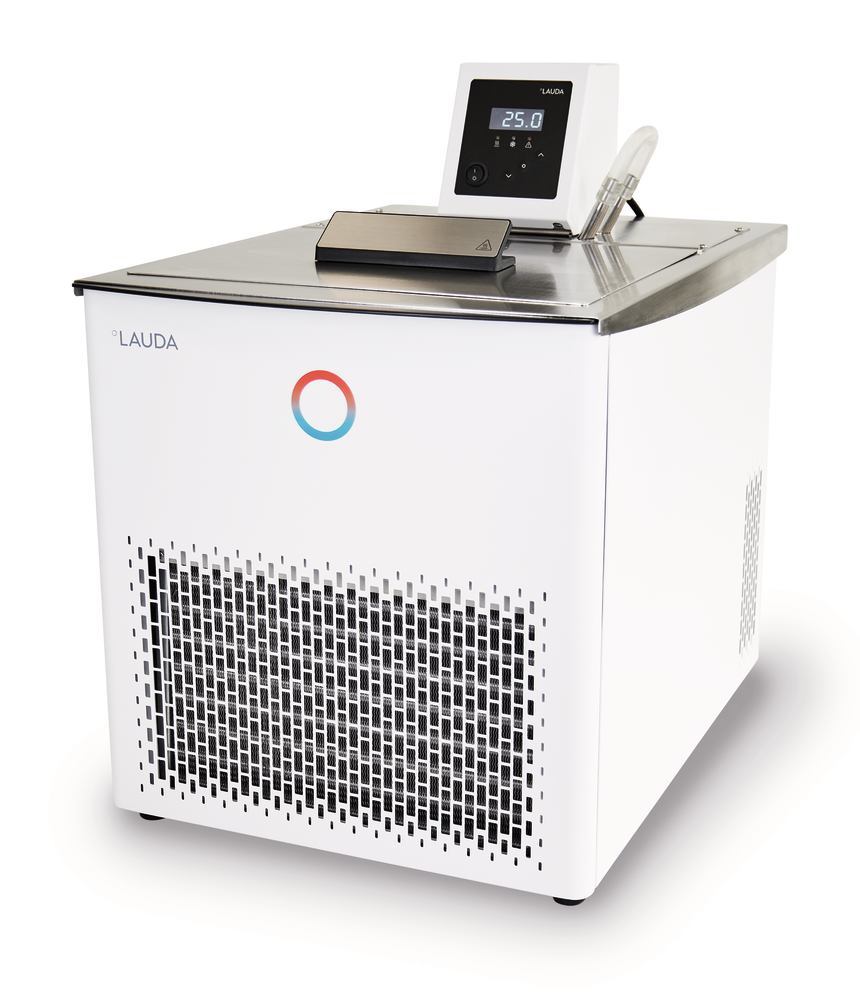

LAUDA Alpha RA 24 cooling thermostat is a bath and circulation thermostat with integrated cooling system for reliable laboratory temperature control from −25 to 100 °C. Temperature constancy is ±0,05 K (DIN 12876), and the unit is intended for non-flammable heat-transfer liquids. Operation is kept simple via a one-line LED display for actual or setpoint values, user-friendly menu guidance and three-button control with a fully electronic continuous controller. Safety features include low-level and overtemperature protection together with acoustic and visual alarms. The stainless-steel bath offers 14,0 to 22,0 L capacity (bath size 350 × 277 × 160 mm). The circulation pump provides up to 15 L/min at max. 0,2 bar with flow reduction; maximum heating power is 1,5 kW and maximum power draw 1,8 kW. Air-cooled condensation with intelligent compressor automation and non-flammable HFC refrigerant R-134a supports F-Gas Regulation VO (EU) 573/2024 compliance; cooling capacity with ethanol is 0,425 kW at 20 °C. External dimensions are 415 × 605 × 605 mm and weight is 43 kg. Supplied from manufacturer Lauda for 220 V; 60 Hz / 230 V; 50 Hz with angled Schuko mains cable, bath cover, pump connection set, short-circuit hose and rear drain connection.
This article is part of Circulators, chillers & thermostats, in Heating, drying & cooling.
Key features
- Pack size: 1 piece
- Working temperature range: −25 … 100 °C
- Temperature constancy: ±0.05 K
- Bath volume: 14 / 22 L
- Heating power max.: 1.5 kW
- Pump flow max.: 15 L/min
- Manufacturer: Lauda
- UNSPSC: 41103709
- Ambient temperature: 5...40 °C
- Current consumption: 8 A
- Pump pressure, maximum: 0.2 bar
- Pump flow, pressure: 15 L/min
- Bath dimensions: 350 × 277 × 160 mm
- Exterior dimensions: 415 × 605 × 605 mm
- Weight: 43 kg
- Voltage: 220 V; 60 Hz / 230 V; 50 Hz
- Technical Information Sheet:
Recently viewed
You may also like
Questions about LAUDA Alpha RA 24 Cooling thermostat 220 V; 60 Hz + 230 V; 50 Hz
What is this article?
LAUDA Alpha RA 24 Cooling thermostat 220 V; 60 Hz + 230 V; 50 Hz is the article on this page. Luminix Health distributes Lauda for laboratory use. It sits in Circulators, chillers & thermostats, inside Heating, drying & cooling, in Lab instruments.
A circulator or thermostat holds a bath liquid at a set temperature and pumps it through a jacket. A chiller is the same idea aimed below ambient. The temperature range, the cooling power and the pump flow are the three numbers. The fluid has to match the range.
Temperature equipment either holds a set point or drives a sample toward one. An oven dries. A furnace reaches the temperatures of ashing and melting. A bath surrounds a vessel with water or oil. A circulator moves that fluid. An incubator holds the mild warmth of a culture. An autoclave uses steam under pressure to sterilise. The number that matters is the temperature the article actually reaches, not the number painted on the dial. Temperature is part of the international system kept by the BIPM and compared by EURAMET.
