Description

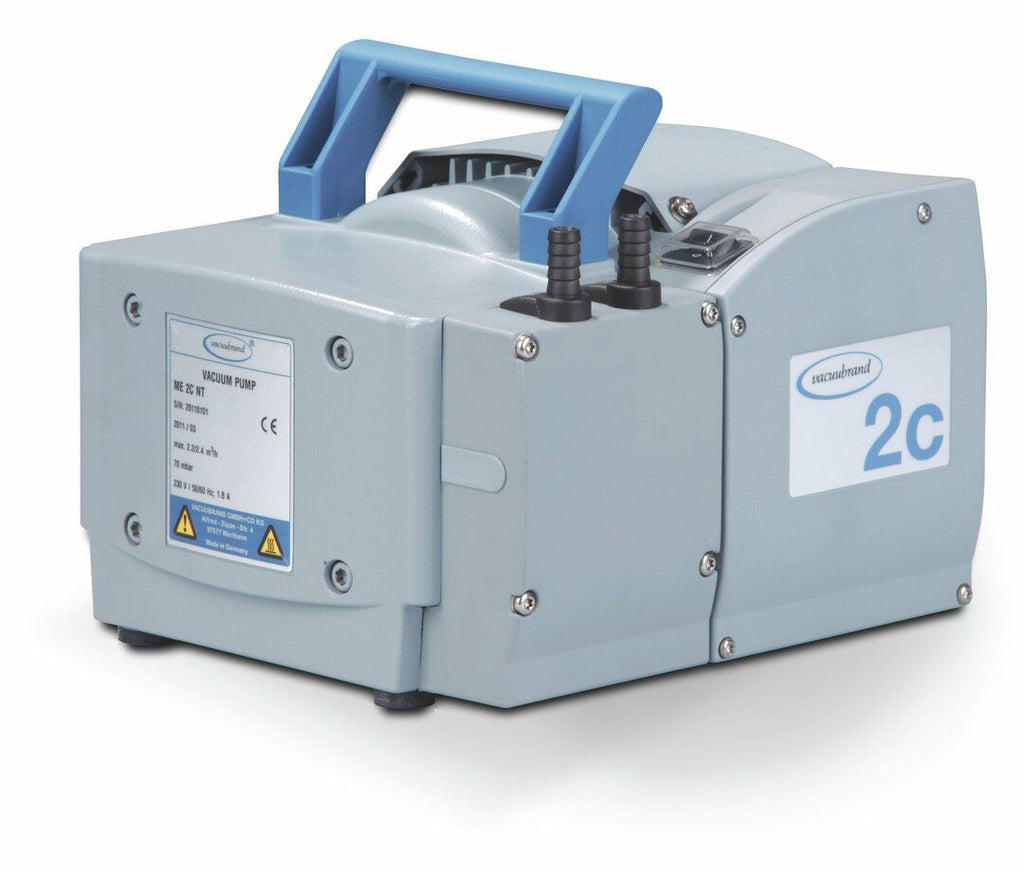

ME 2C NT is a single-stage chemistry diaphragm pump designed for laboratory vacuum applications involving chemical media. It carries NRTL certification (C/US) and operates at 230 V / 50-60 Hz, supplied complete with a UK/IN power cable for straightforward regional installation. The compact unit is offered as a single piece and is engineered as a chemical-resistant membrane pump suitable for routine chemistry workflows where reliable, oil-free vacuum generation is required. Physical data include a net weight of 11.3 kg and a gross weight of 13.3 kg, reflecting a robust laboratory instrument built for continuous bench or system use. Manufactured by VACUUBRAND in Germany, the ME 2C NT combines a proven single-stage diaphragm design with the electrical configuration needed for UK and Indian mains standards. Its chemistry-compatible construction supports handling of aggressive vapours while maintaining stable vacuum performance. This configuration is intended for laboratories that specify the ME 2C NT platform together with the corresponding UK/IN mains lead and C/US NRTL approval, ensuring compatibility with local electrical requirements and safety certification schemes.
This article is part of Vacuum pumps, in Pumps, vacuum & evaporation.
Key features
- Pack size: 1 pc
- Product type: Single-stage chemistry diaphragm pump
- Model: ME 2C NT
- Certification: NRTL C/US
- Voltage: 230 V / 50-60 Hz
- Power cable: UK/IN
- Manufacturer: VACUUBRAND
- UNSPSC: 41104900

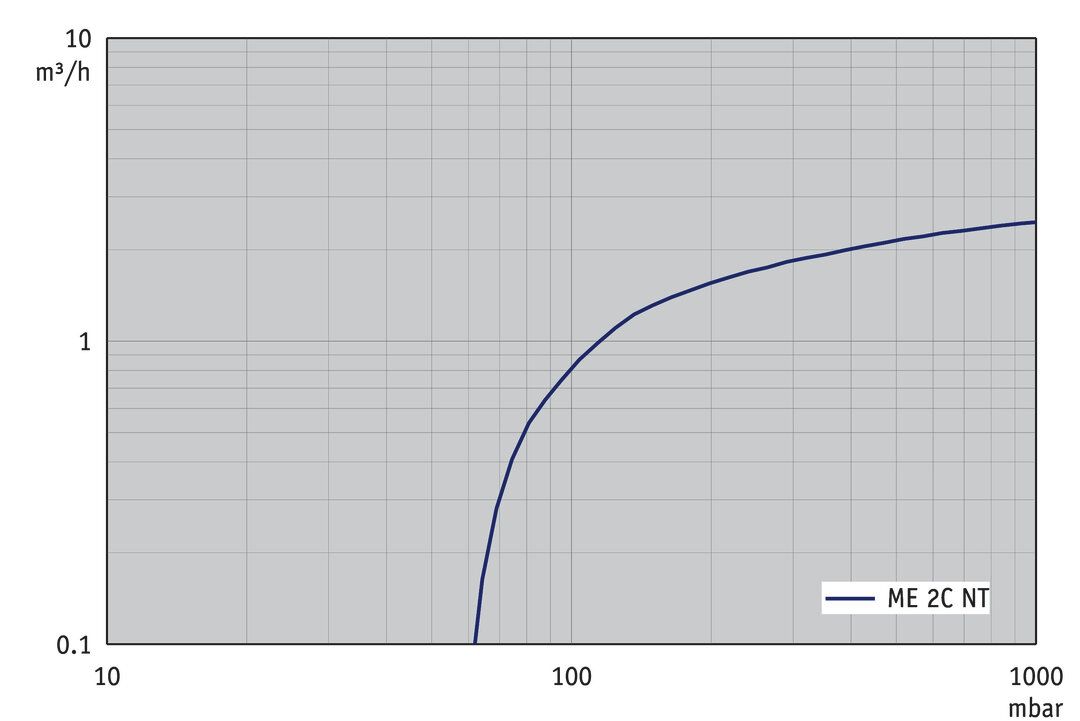

- Max. pumping speed 50 Hz: 2.1 m³/h
- Max. pumping speed 60 Hz: 1.4 cfm
- Ultimate vacuum: 70 mbar / 52 torr
- Number of heads: 1
- Number of stages: 1
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: Hose nozzle DN 8-10 mm
- Outlet connection: Hose nozzle DN 8-10 mm
- Rated motor power: 0.18 kW
- Rated motor speed at 50/60 Hz: 1500/1800 min⁻¹
- Protection class IEC 60529: IP 40

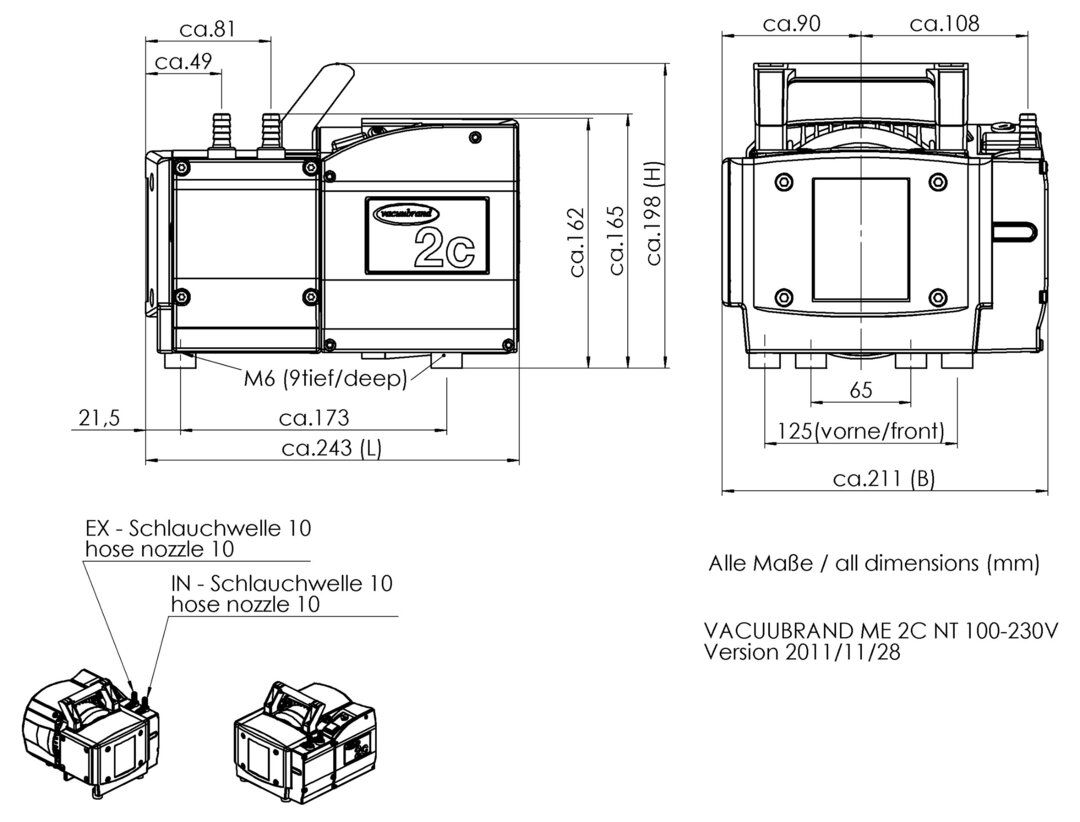

- Dimension L in mm: 243 mm
- Dimension B in mm: 211 mm
- Dimension H in mm: 198 mm
- Weight: 10.2 kg
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 45 dBA
- ATEX conformity: II 3/- G Ex h IIC T3 Gc X Internal Atm. only
- NRTL certification: Yes
- Items supplied: Pump completely mounted, ready for use, with manual.
- Rated mains voltage range 1: 230 V
- Mains frequency 1: 50-60 Hz
- Technical Information Sheet:
Recently viewed
You may also like
Browse related categories
Category
Sub-category
Catalogue
Brand
Questions about ME 2C NT, UK/IN
What is this article?
ME 2C NT, UK/IN is the article on this page. Luminix Health distributes Vacuubrand for laboratory use. It sits in Vacuum pumps, inside Pumps, vacuum & evaporation, in Lab instruments.
A laboratory vacuum pump lowers pressure for filtration or evaporation. A diaphragm pump tolerates solvent vapour better than an oil-sealed rotary vane pump, and it reaches a milder vacuum. The ultimate vacuum and the flow, and whether the wetted path survives the solvent, are the choices.
A vacuum pump lowers the pressure above a liquid so it boils at a lower temperature. That is the point of a rotary evaporator: solvent leaves a sample without cooking it. A diaphragm pump or a rotary-vane pump is chosen by the vacuum it reaches and by whether solvent vapour will destroy it. A peristaltic pump moves liquid by squeezing a tube, so the liquid touches only the tube. A barrel pump transfers a larger volume from a drum. The glassware on the evaporator is indexed under ISO laboratory glassware. Solvent identity is on PubChem.
