Description

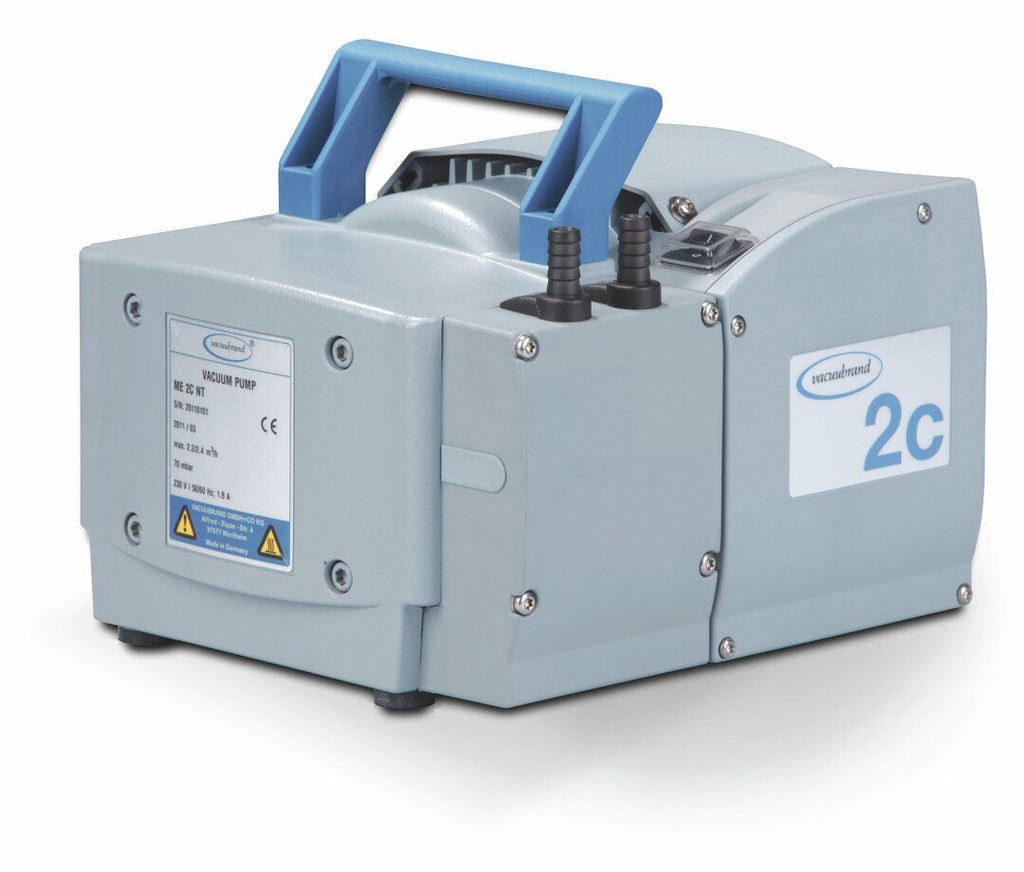

ME 2C NT is a single-stage chemistry diaphragm pump intended for laboratory vacuum duties with chemical media. This version holds NRTL certification (C/US) and is configured for 100-115 V / 50-60 Hz and 120 V / 60 Hz operation, supplied with a US power cable. Delivered as one piece, the pump provides oil-free vacuum generation in a compact, chemically resistant diaphragm design suited to everyday chemistry laboratory work. Net weight is 10.9 kg and gross weight is 12.9 kg, indicating a solid instrument ready for bench-top or integrated system installation. The unit originates from manufacturer VACUUBRAND in Germany and pairs the established ME 2C NT single-stage platform with the voltage range and mains lead required for North American electrical standards. Its chemistry-compatible membrane construction supports reliable handling of corrosive vapours while delivering stable vacuum performance. Laboratories specifying the ME 2C NT with US mains connection and C/US NRTL approval will find this configuration matched to local power requirements and certification needs without additional adaptation.
This article is part of Vacuum pumps, in Pumps, vacuum & evaporation.
Key features
- Pack size: 1 pc
- Product type: Single-stage chemistry diaphragm pump
- Model: ME 2C NT
- Certification: NRTL C/US
- Voltage: 100-115 V / 50-60 Hz, 120 V / 60 Hz
- Power cable: US
- Manufacturer: VACUUBRAND
- UNSPSC: 41104900

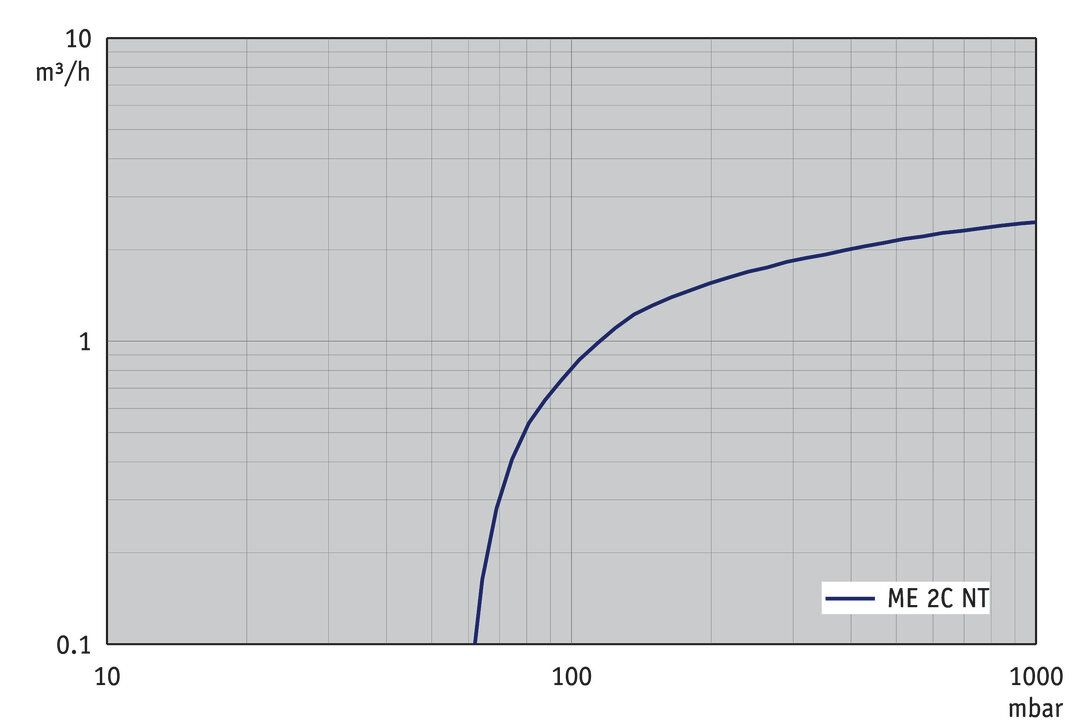

- Max. pumping speed 50 Hz: 2.1 m³/h
- Max. pumping speed 60 Hz: 1.4 cfm

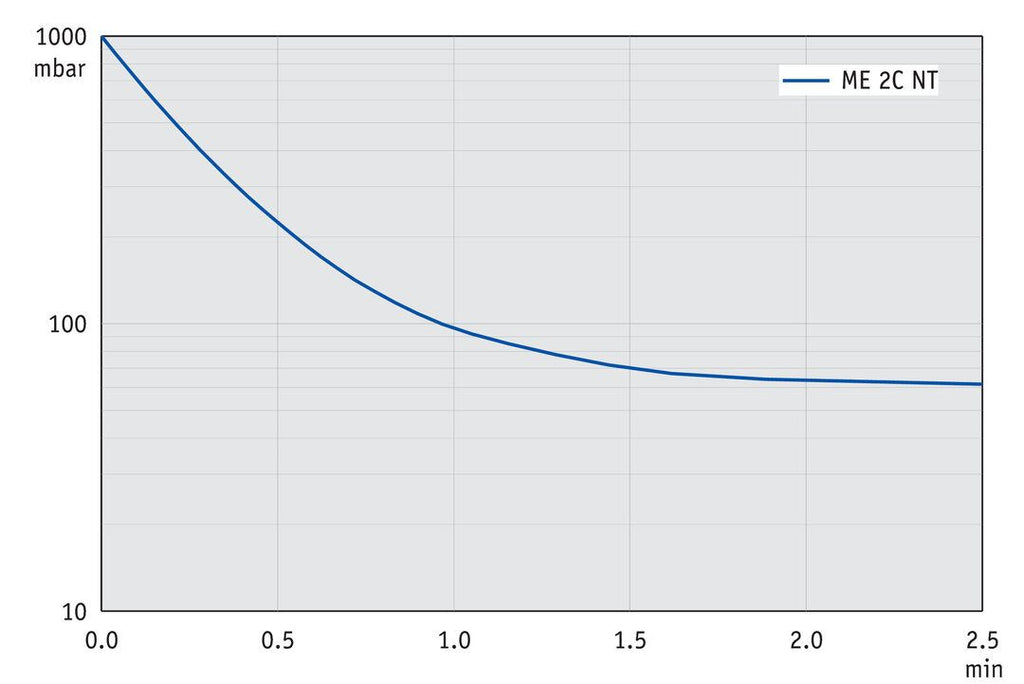

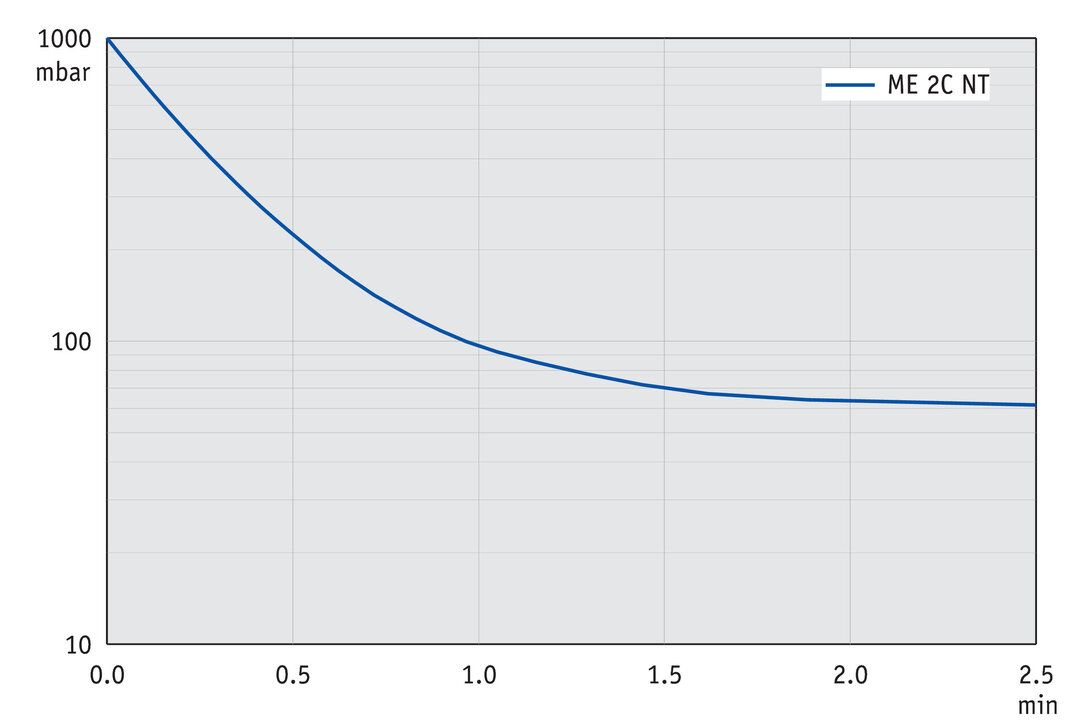

- Ultimate vacuum: 70 mbar / 52 torr
- Number of heads: 1
- Number of stages: 1
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: Hose nozzle DN 8-10 mm
- Outlet connection: Hose nozzle DN 8-10 mm
- Rated motor power: 0.18 kW
- Rated motor speed at 50/60 Hz: 1500/1800 min⁻¹
- Protection class IEC 60529: IP 40

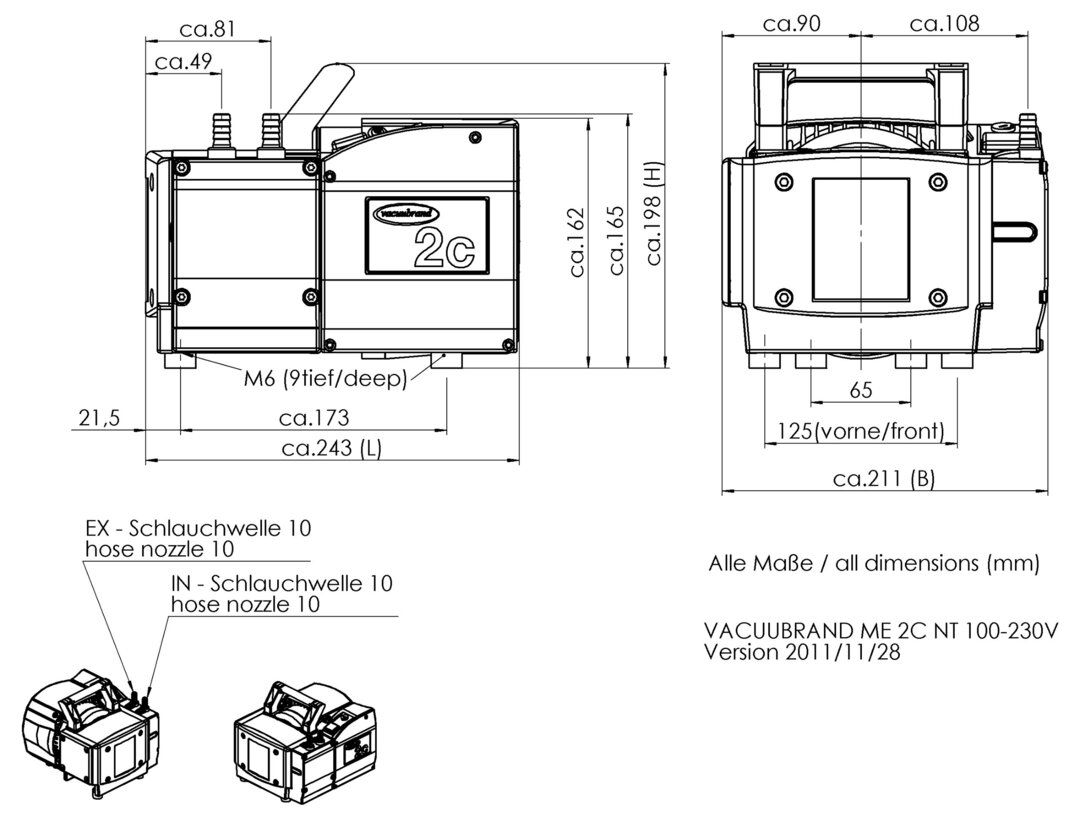

- Dimension L in mm: 243 mm
- Dimension B in mm: 211 mm
- Dimension H in mm: 198 mm
- Weight: 10.2 kg
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 45 dBA
- NRTL certification: Yes
- Items supplied: Pump completely mounted, ready for use, with manual.
- Rated mains voltage range 1: 100-115 V
- Rated mains voltage range 2: 120 V
- Mains frequency 1: 50-60 Hz
- Mains frequency 2: 60 Hz
- Technical Information Sheet:
