Description

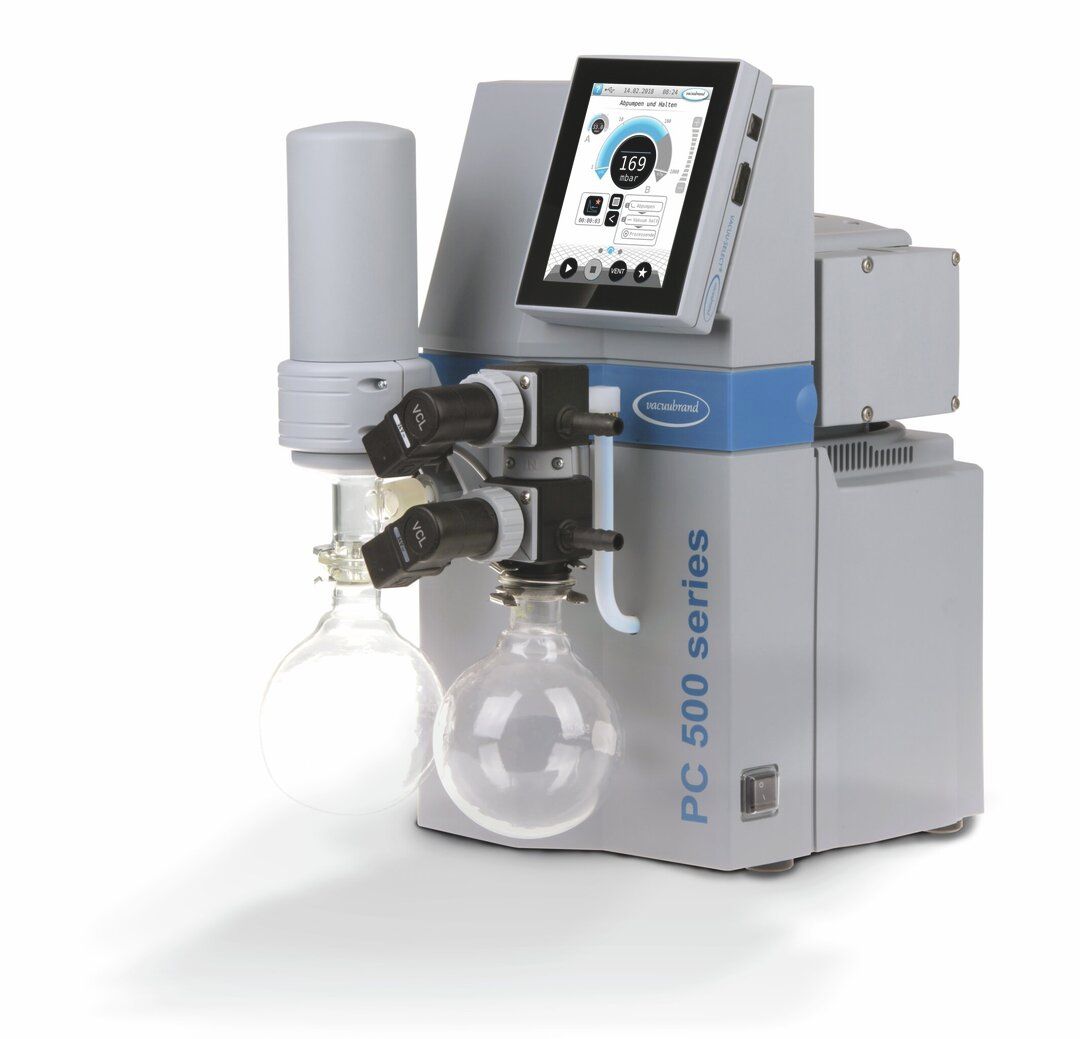

PC 520 select is a chemistry pump stand fitted with the MZ 2C NT pump unit for laboratory vacuum applications. This variant operates at 230 V / 50-60 Hz and includes a CN mains cable for use with corresponding electrical outlets. The complete stand brings together the chemistry-resistant pump and supporting elements in one integrated assembly suitable for chemical and analytical laboratory work. Net weight is 18.9 kg and gross weight is 25 kg. Produced in Germany and supplied by manufacturer VACUUBRAND, the PC 520 select delivers a practical, ready-to-install vacuum pump stand. It is provided as one piece and falls under the UNSPSC category for laboratory vacuum equipment. Built around the MZ 2C NT pump, this configuration addresses the need for a dedicated chemistry pump stand compatible with CN power connections while maintaining a robust, laboratory-oriented design for everyday vacuum tasks.
This article is part of Vacuum pumps, in Pumps, vacuum & evaporation.
Key features
- Pack size: 1 pc
- Type: Chemistry pump stand
- Pump unit: MZ 2C NT
- Electrical supply: 230 V / 50-60 Hz
- Power cable: CN
- Manufacturer: VACUUBRAND
- Net weight: 18.9 kg
- UNSPSC: 41104900

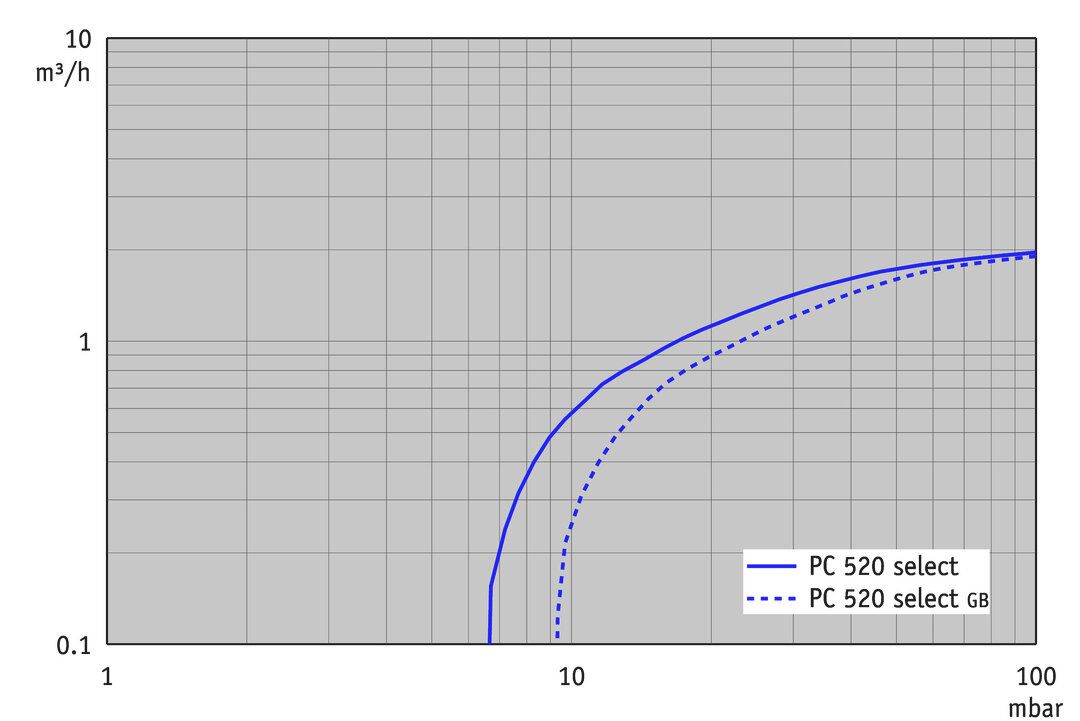

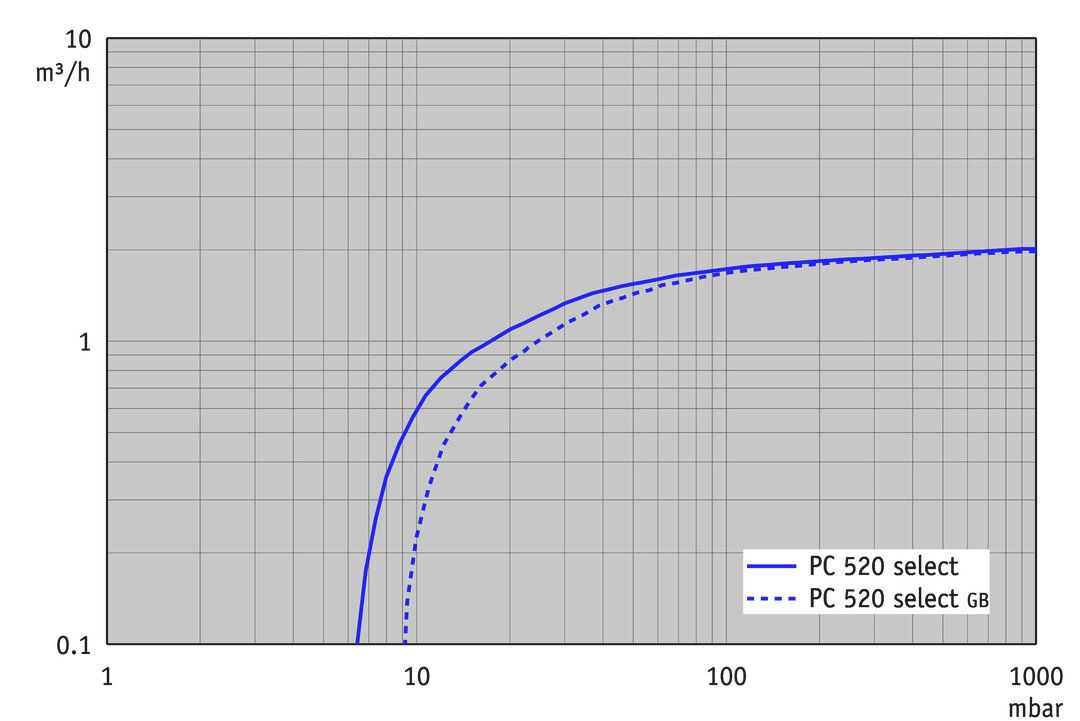

- Max. pumping speed 50 Hz: 2 m³/h
- Max. pumping speed 60 Hz: 1.4 cfm
- Ultimate vacuum: 7 mbar / 5 torr
- Ultimate vacuum with gas ballast: 12 mbar / 9 torr
- Number of heads: 2
- Number of stages: 2
- Vacuum controller: VACUU·SELECT
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: 2 x hose nozzle DN 8-10 mm
- Outlet connection: Hose nozzle DN 8-10 mm
- Coolant connection: 2 x hose nozzle DN 6-8 mm
- Rated motor power: 0.18 kW
- Rated motor speed at 50/60 Hz: 1500/1800 min⁻¹
- Protection class IEC 60529: IP 20

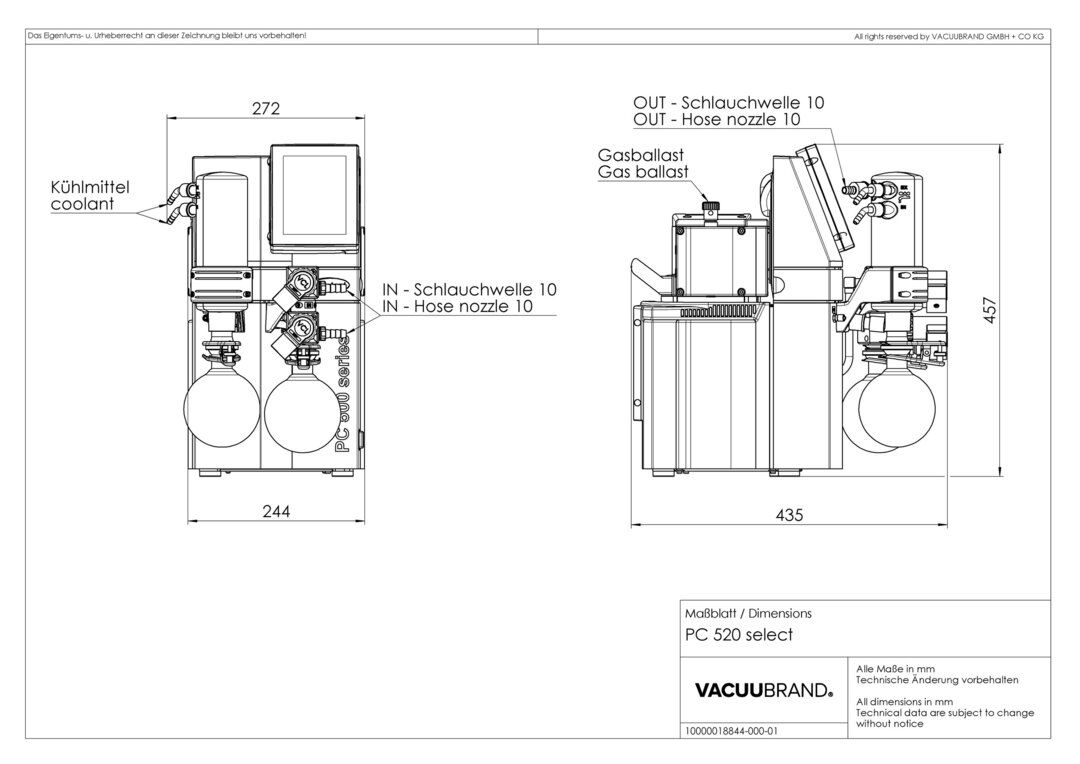

- Dimension L in mm: 435 mm
- Dimension B in mm: 272 mm
- Dimension H in mm: 457 mm
- Weight: 19.6 kg
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 45 dBA
- ATEX conformity: II 3/- G Ex h IIC T3 Gc X Internal Atm. only
- NRTL certification: No
- Items supplied: Pumping unit completely mounted, ready for use, with manual.
- Rated mains voltage range 1: 230 V
- Mains frequency 1: 50-60 Hz
- Interface: Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required)

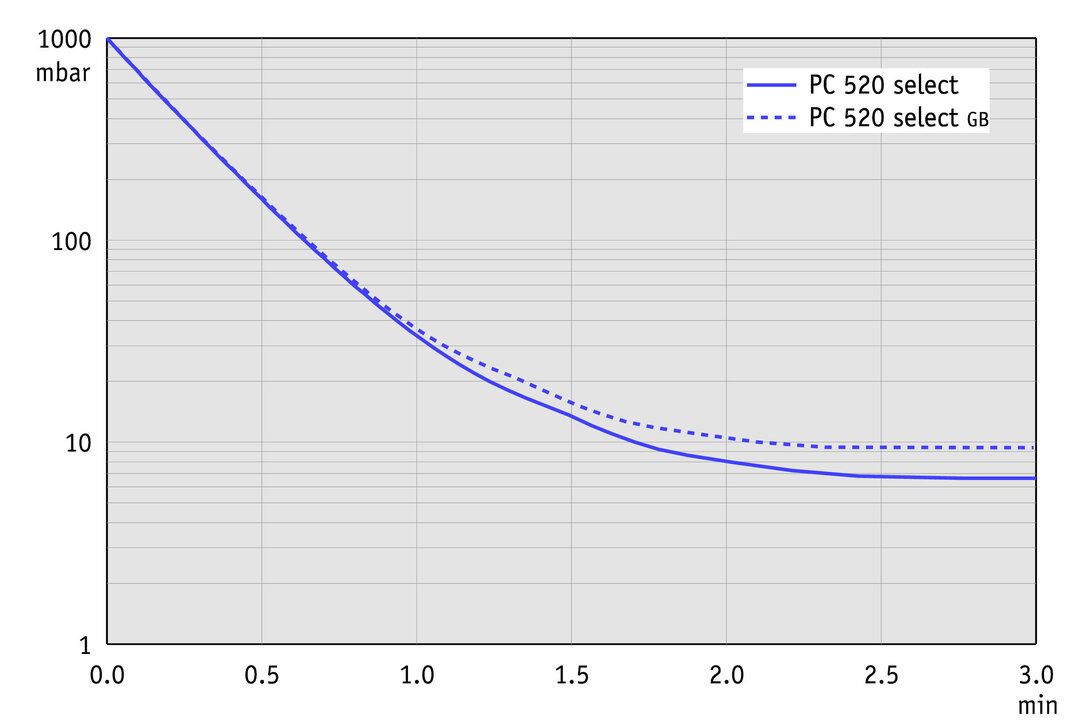

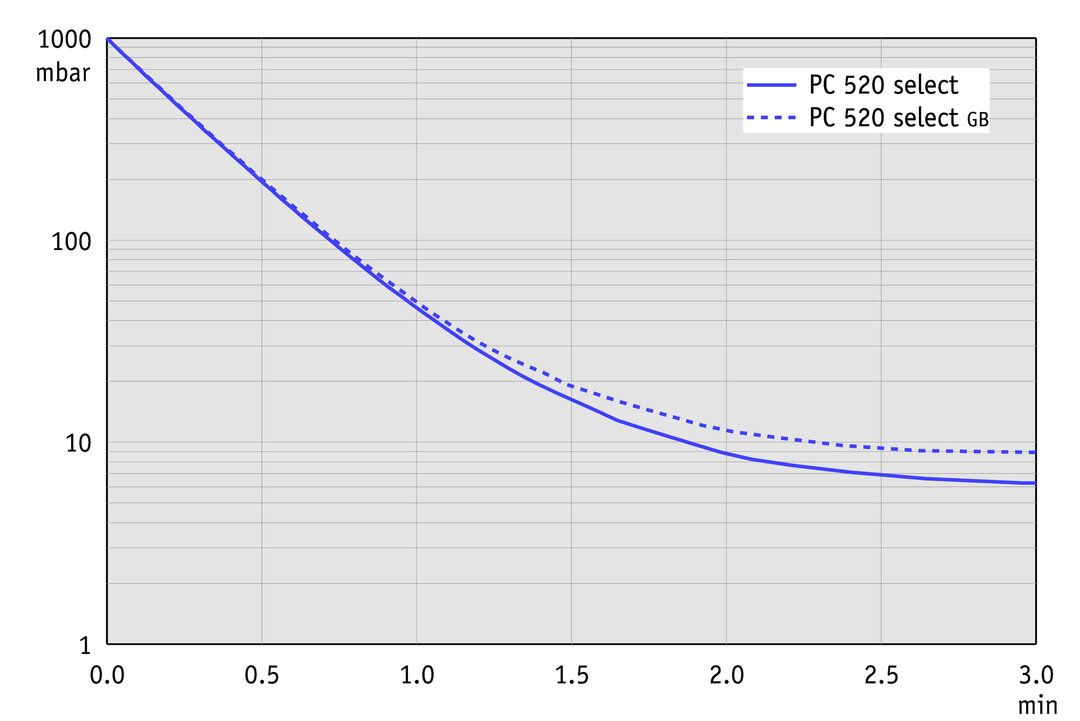

- Technical Information Sheet:
