Description

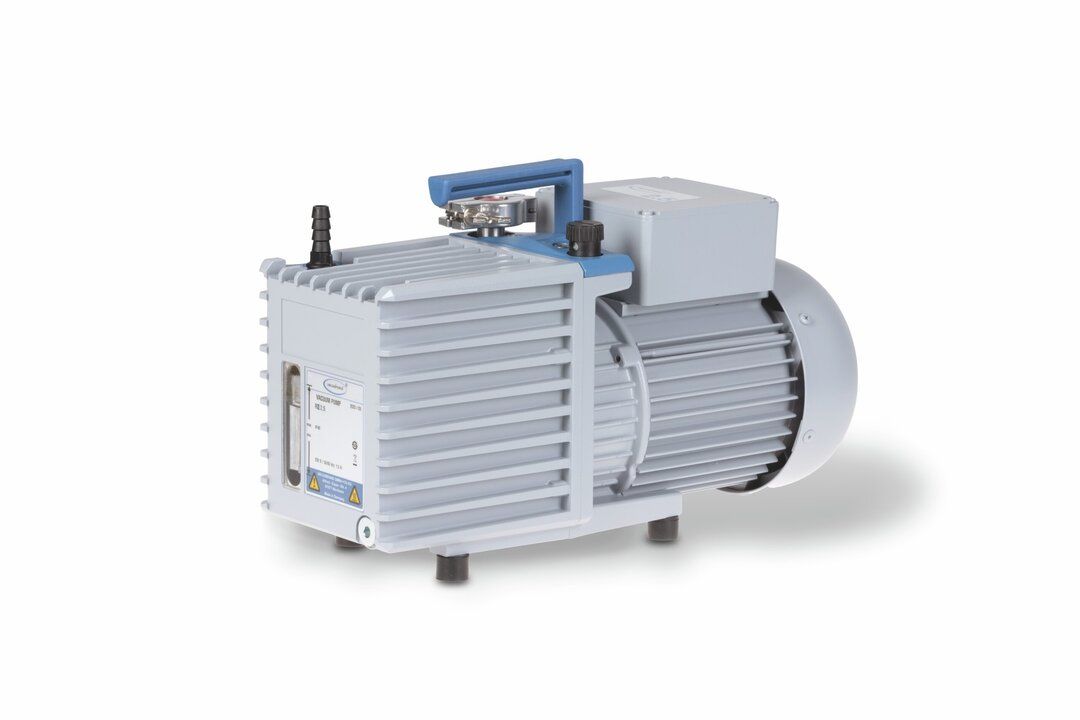

RZ 2.5 is a two-stage rotary vane pump intended for laboratory vacuum applications and rated for 230 V / 50-60 Hz operation. The instrument is fitted with a CH power cable to suit Swiss laboratory electrical connections. This two-stage pump from manufacturer VACUUBRAND replaces the earlier article number 20698121 and offers proven rotary vane vacuum generation in a compact format. Net weight is 14.9 kg and gross weight is 16.8 kg, underscoring a durable build appropriate for regular laboratory service. Produced in Germany, the RZ 2.5 meets the needs of vacuum processes that call for reliable two-stage rotary vane technology. The 230 V / 50-60 Hz electrical rating aligns with standard laboratory supplies, and the CH cable provides regional compatibility. Delivered as 1 pc, the pump constitutes a self-contained vacuum source ready for integration into existing setups. Laboratories requiring a clearly defined two-stage rotary vane pump with Swiss power connection will find this model a practical and precisely specified choice.
This article is part of Vacuum pumps, in Pumps, vacuum & evaporation.
Key features
- Pack size: 1 piece
- Product type: Two-stage rotary vane pump
- Model: RZ 2.5
- Voltage: 230 V, 50-60 Hz
- Frequency: 50-60 Hz
- Power cable: CH
- Manufacturer: VACUUBRAND
- UNSPSC: 41104900

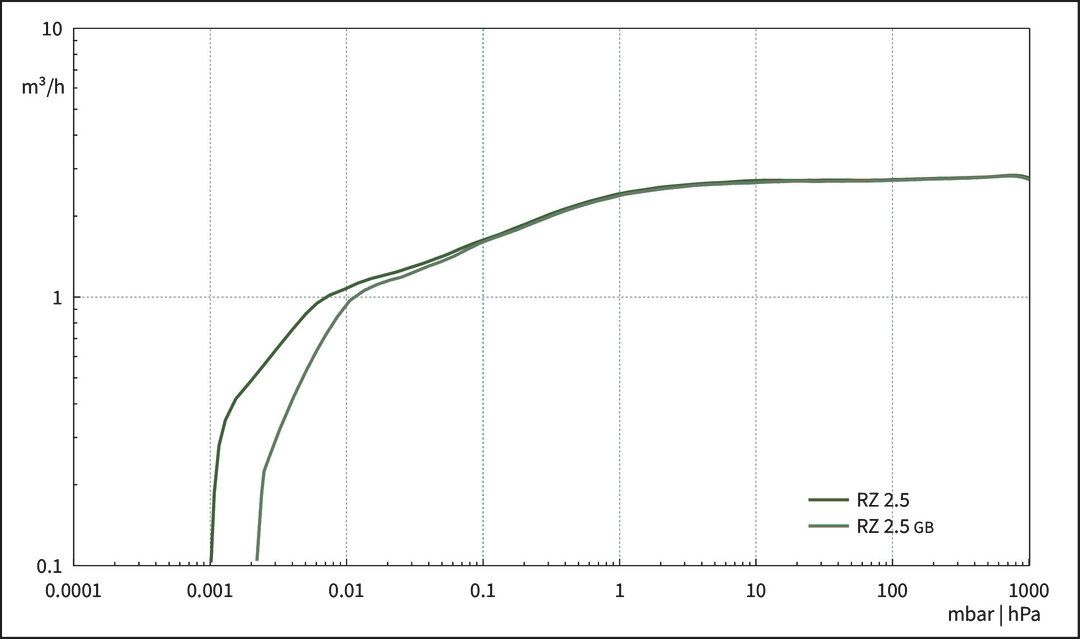

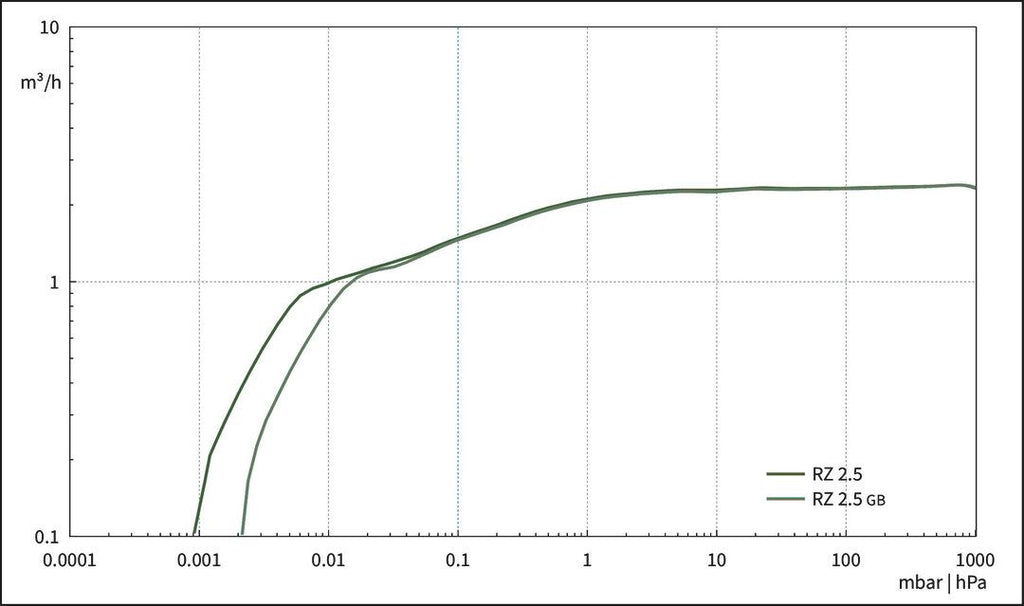

- Max. pumping speed 50 Hz: 2.3 m³/h
- Max. pumping speed 60 Hz: 1.65 cfm
- Ultimate partial vacuum (abs.) without gas ballast: 4 x 10⁻⁴ mbar

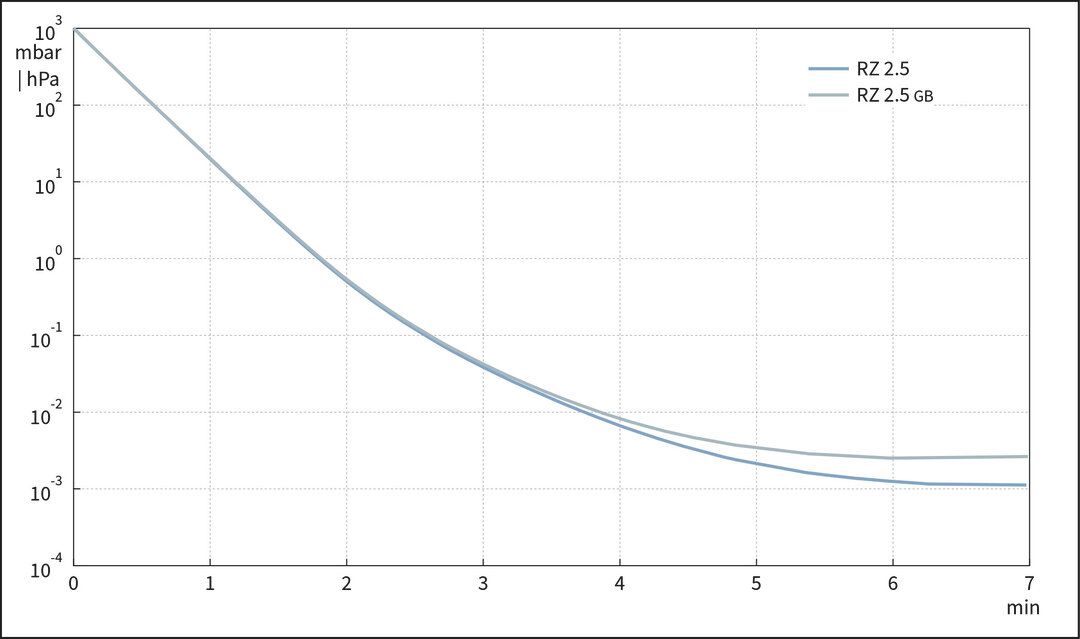

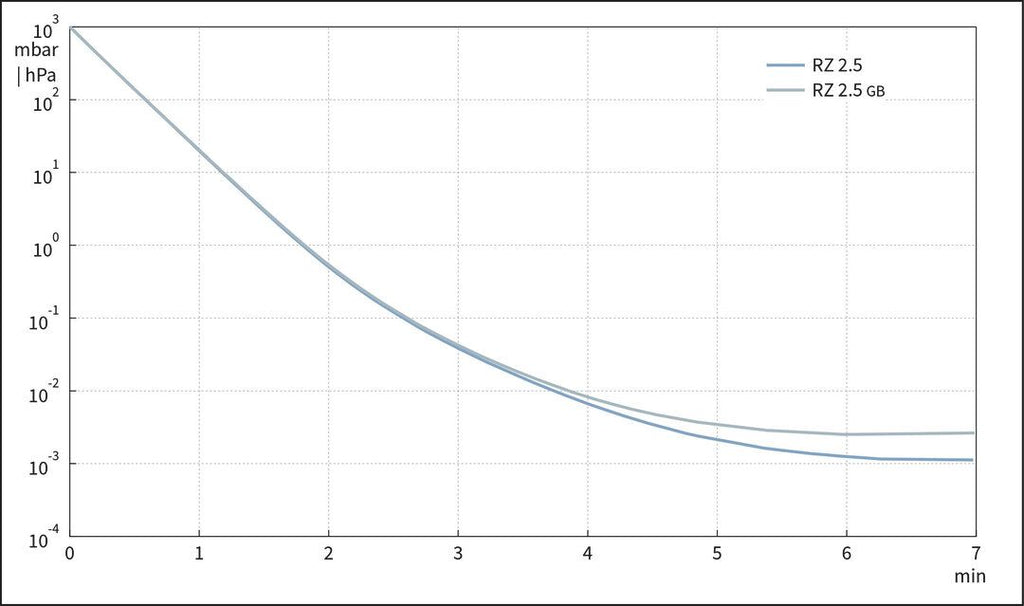

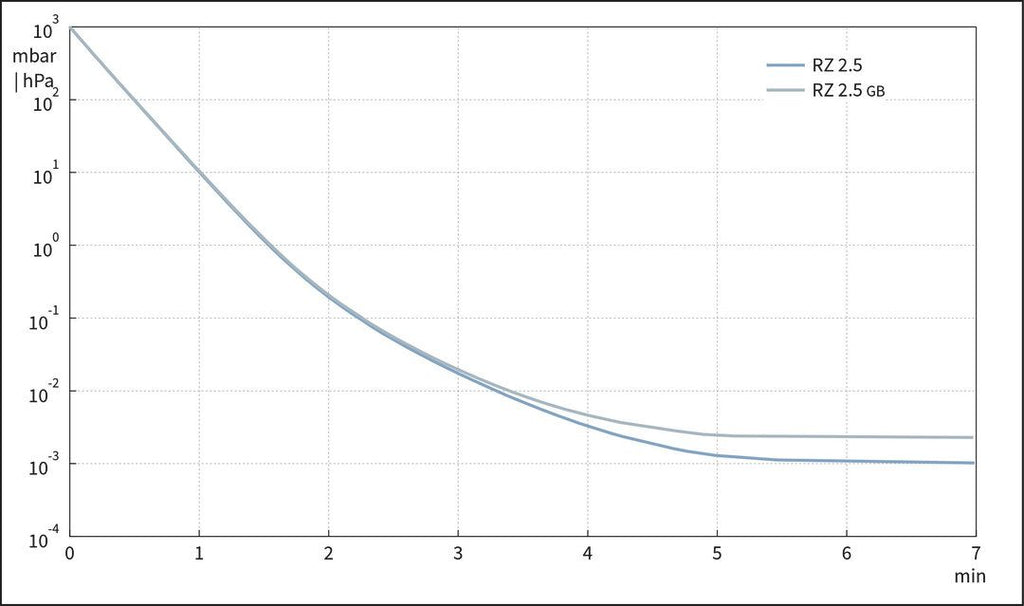

- Ultimate vacuum: 2 x 10⁻³ mbar / 1.5 x 10⁻³ torr
- Ultimate vacuum with gas ballast: 1 x 10⁻² mbar / 0.75 x 10⁻² torr
- Number of stages: 2
- Lower ambient temperature (operation): 12 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Oil capacity (B-Oil) min.: 0.36 l
- Oil capacity (B-Oil) max.: 0.84 l
- Inlet connection: small flange KF DN 16
- Outlet connection: Hose nozzle DN 8-10 mm
- Rated motor power: 0.1 kW
- Rated motor speed at 50/60 Hz: 1500/1800 min⁻¹
- Protection class IEC 60529: IP 40

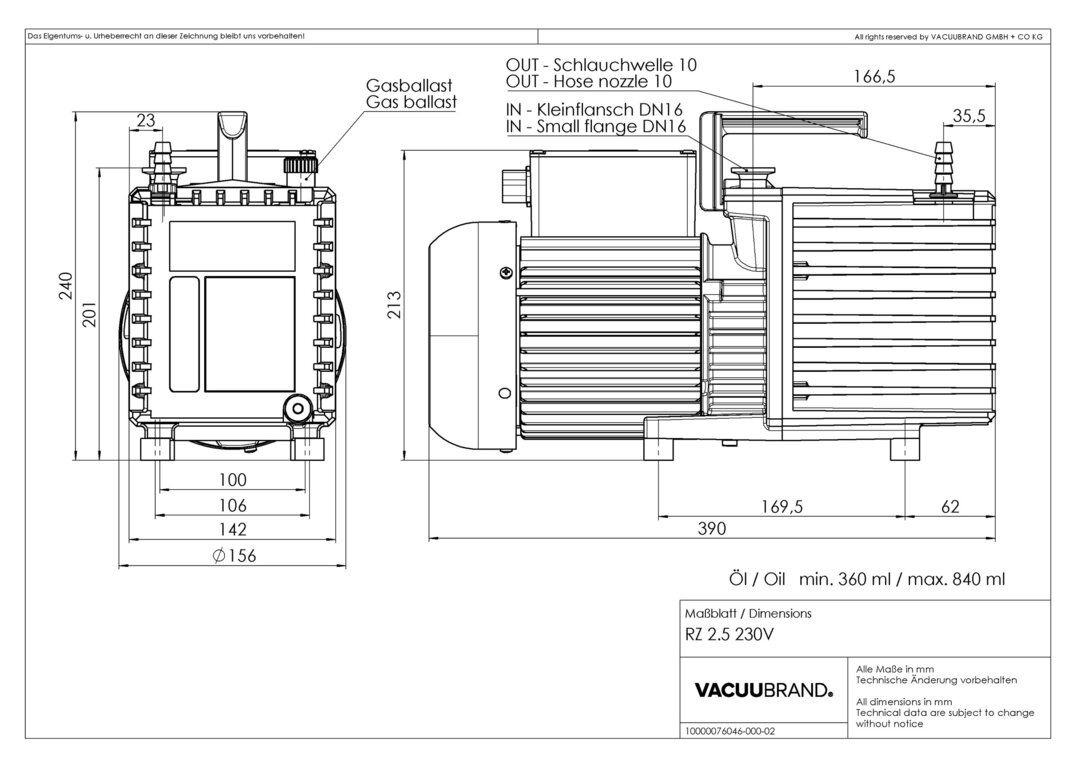

- Dimension L in mm: 390 mm
- Dimension B in mm: 156 mm
- Dimension H in mm: 240 mm
- Weight: 14.2 kg
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 48 dBA
- NRTL certification: No
- Items supplied: Pump oil filled and completely mounted, ready for use, with manual.
- Rated mains voltage range 1: 230 V
- Mains frequency 1: 50-60 Hz
- Technical Information Sheet:
Recently viewed
You may also like
Browse related categories
Category
Sub-category
Catalogue
Brand
Questions about RZ 2.5, CH
What is this article?
RZ 2.5, CH is the article on this page. Luminix Health distributes Vacuubrand for laboratory use. It sits in Vacuum pumps, inside Pumps, vacuum & evaporation, in Lab instruments.
A laboratory vacuum pump lowers pressure for filtration or evaporation. A diaphragm pump tolerates solvent vapour better than an oil-sealed rotary vane pump, and it reaches a milder vacuum. The ultimate vacuum and the flow, and whether the wetted path survives the solvent, are the choices.
A vacuum pump lowers the pressure above a liquid so it boils at a lower temperature. That is the point of a rotary evaporator: solvent leaves a sample without cooking it. A diaphragm pump or a rotary-vane pump is chosen by the vacuum it reaches and by whether solvent vapour will destroy it. A peristaltic pump moves liquid by squeezing a tube, so the liquid touches only the tube. A barrel pump transfers a larger volume from a drum. The glassware on the evaporator is indexed under ISO laboratory glassware. Solvent identity is on PubChem.
