Description

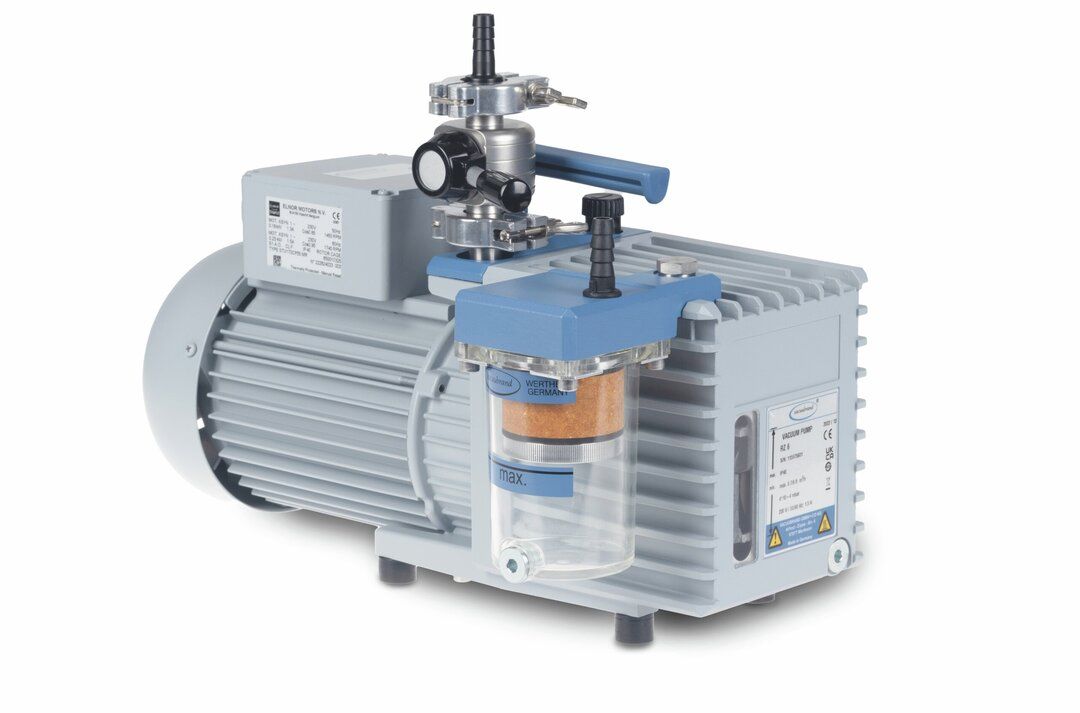

RZ 6 package is a complete rotary vane pump package supplied with an exhaust filter and shut-off valve VS 16 for laboratory vacuum work. The unit runs on 230 V at 50-60 Hz and is fitted with a UK power cable for direct connection in compatible installations. This ready-to-use package from manufacturer VACUUBRAND replaces the earlier article number 20698059 and combines the RZ 6 pump with matched accessories in one set. Net weight is 21.02 kg and gross weight is 24.6 kg, indicating a robust construction suited to regular laboratory handling and system integration. Originating from Germany, the package supports vacuum generation tasks that rely on rotary vane technology. The exhaust filter assists with exhaust management while the VS 16 shut-off valve enables secure isolation of the vacuum line during operation or maintenance. Offered as 1 pc(s), the configuration simplifies procurement by delivering pump, filter and valve together. Laboratories seeking a matched rotary vane solution for everyday vacuum applications will find this package a practical, self-contained choice without separate accessory selection.
This article is part of Vacuum pumps, in Pumps, vacuum & evaporation.
Key features
- Pack size: 1 piece
- Product type: Rotary vane pump package
- Configuration: Exhaust filter and shut-off valve VS 16
- Voltage: 230 V, 50-60 Hz
- Frequency: 50-60 Hz
- Power cable: UK
- Manufacturer: VACUUBRAND
- UNSPSC: 41104900

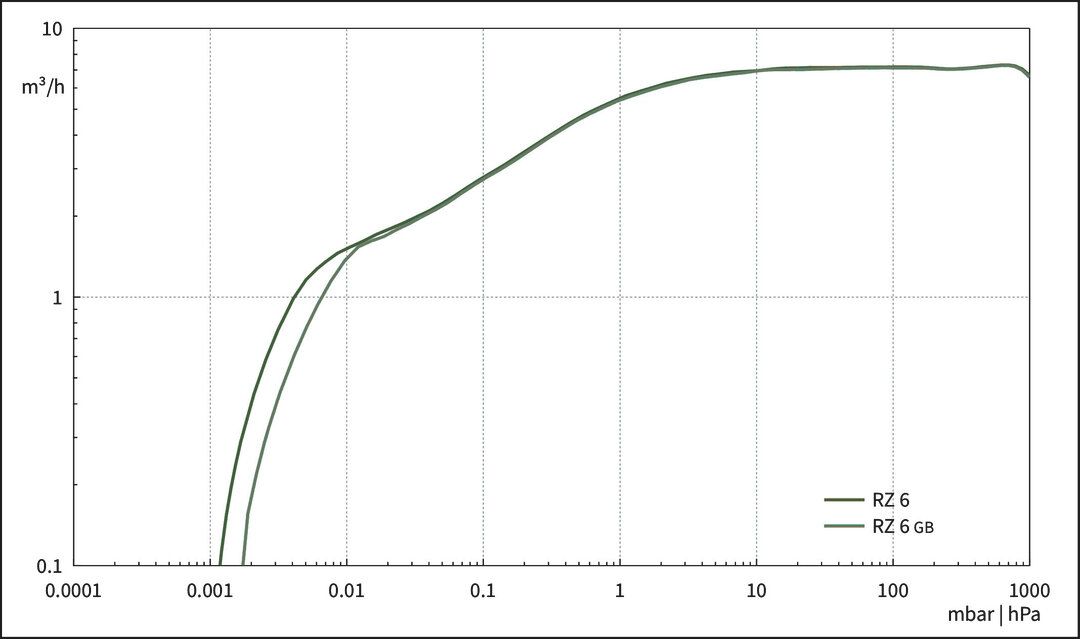

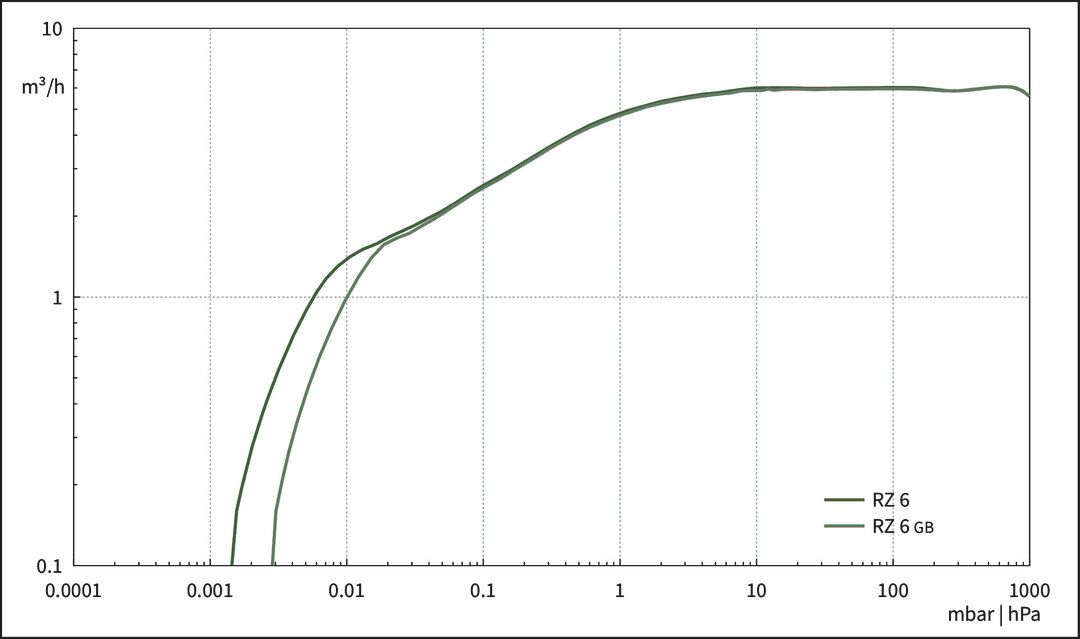

- Max. pumping speed 50 Hz: 5.7 m³/h
- Max. pumping speed 60 Hz: 4 cfm
- Ultimate partial vacuum (abs.) without gas ballast: 4 x 10⁻⁴ mbar
- Ultimate vacuum: 2 x 10⁻³ mbar / 1.5 x 10⁻³ torr
- Ultimate vacuum with gas ballast: 1 x 10⁻² mbar / 0.75 x 10⁻² torr
- Number of stages: 2
- Water vapor tolerance with gas ballast: 40 mbar
- Lower ambient temperature (operation): 12 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Oil capacity (B-Oil) min.: 0.34 l
- Oil capacity (B-Oil) max.: 0.73 l
- Inlet connection: Small flange KF DN 16 / hose nozzle DN 10 mm
- Outlet connection: Hose nozzle DN 8-10 mm
- Rated motor power: 0.18 kW
- Rated motor speed at 50/60 Hz: 1500/1800 min⁻¹
- Protection class IEC 60529: IP 40

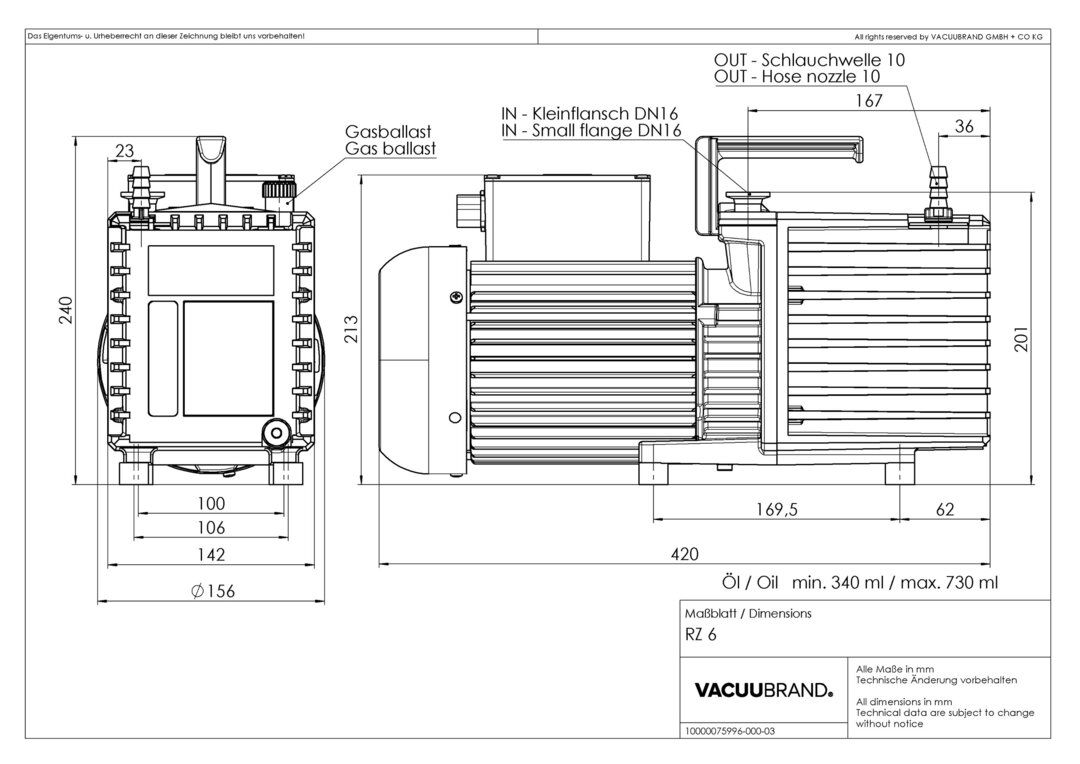

- Dimension L in mm: 420 mm
- Dimension B in mm: 230 mm
- Dimension H in mm: 240 mm
- Weight: 17.8 kg
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 50 dBA
- NRTL certification: No
- Items supplied: Pump oil filled and completely mounted, ready for use, with manual. With oil mist filter FO and isolation valve VS 16
- Rated mains voltage range 1: 230 V
- Mains frequency 1: 50-60 Hz
- Technical Information Sheet:
