Description

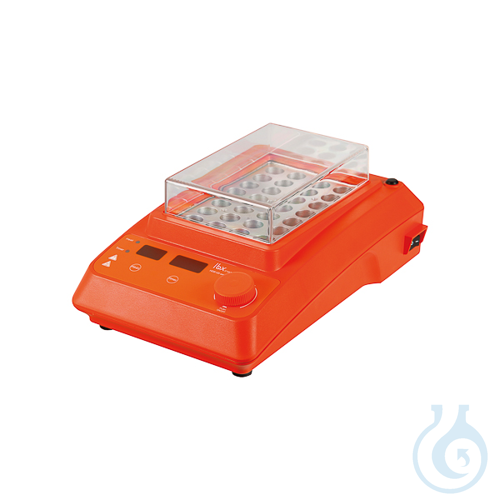

Digital metal block thermostat LBX HDB120 is intended for dry heating of metal blocks measuring 150 × 95 mm. Temperature is adjustable up to 120 °C with an accuracy of ±0,5 °C and a display resolution of 0,1 °C, supporting controlled incubation and sample preparation. Two modes are available: continuous operation or timed runs from 1 min to 99 h 59 min. Heating power is 160 W, and an LED display shows temperature and time together. The instrument includes one metal block for 40 × 1,5/2 ml tubes and accepts further interchangeable blocks (not included) for other vessel formats. Overheating protection is built in. External dimensions are 290 × 175 × 85 mm; supply is 200–240 V / 50–60 Hz with protection rating IP21 (DIN EN 60529). This compact unit from manufacturer Labbox suits molecular biology, clinical and general laboratory dry-heating workflows. A two-year warranty is included with the device.
This article is part of Hot plates & heating blocks, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Model: LBX HDB120
- Temperature: up to 120 °C (±0,5 °C, resolution 0,1 °C)
- Heating power: 160 W
- Operating modes: continuous or timer 1 min–99 h 59 min
- EAN: 8434868099500
- GTIN: 08434868099500
- Technical Information Sheet:
Recently viewed
You may also like
Browse related categories
Category
Sub-category
Catalogue
Brand
Questions about Digital dry bath, LBX HDB120 series, EU plug
What is this article?
Digital dry bath, LBX HDB120 series, EU plug is the article on this page. Luminix Health distributes Labbox for laboratory use. It sits in Hot plates & heating blocks, inside Heating, drying & cooling, in Lab instruments.
A hot plate heats a flat-bottom vessel from below, often with stirring. A heating block holds tubes in machined holes so each tube sees the same temperature. The block's hole diameter has to match the tube, or the heat never arrives.
Temperature equipment either holds a set point or drives a sample toward one. An oven dries. A furnace reaches the temperatures of ashing and melting. A bath surrounds a vessel with water or oil. A circulator moves that fluid. An incubator holds the mild warmth of a culture. An autoclave uses steam under pressure to sterilise. The number that matters is the temperature the article actually reaches, not the number painted on the dial. Temperature is part of the international system kept by the BIPM and compared by EURAMET.
