Description

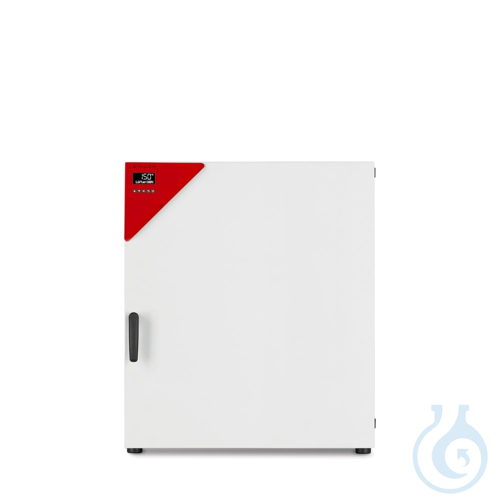

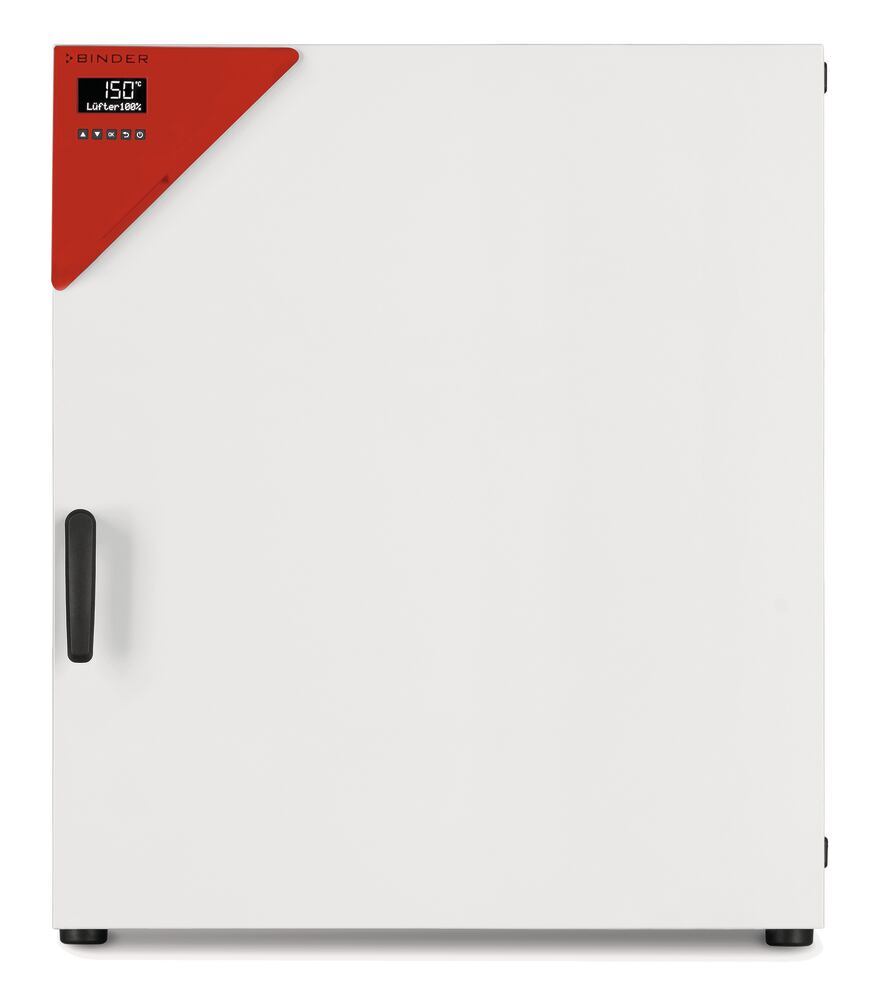

Drying and heating oven ED260-230V is a natural-convection laboratory oven designed for routine drying and sterilisation work up to 300 °C. With a nominal volume of 255 l, it operates from +5 °C above ambient temperature to +300 °C and delivers high temperature accuracy through APT.line™ technology. Natural convection supports efficient thermal processes and promotes fast, uniform drying. The unit is up to 30 % more energy-efficient than typical market devices. A controller with LCD display, electromechanical exhaust-flap control, two chrome-plated racks, an integrated temperature selector limiter Class 2 (DIN 12880) with optical alarm, ergonomic handle design, USB port for data recording and an Ethernet interface complete the configuration. Supplied as 1 pc with Euro plug (Type C), the oven (Binder) offers a practical solution for everyday drying and heating tasks in research and quality-control laboratories. Net weight is 93 kg; gross weight is 95 kg.
This article is part of Drying ovens & climate chambers, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Nominal volume: 255 l
- Temperature range: +5 °C above ambient to +300 °C
- Convection: natural convection
- Technology: APT.line™
- Interface: Ethernet
- Manufacturer: Binder
- UNSPSC: 41104502
- Interior dimensions: 610 × 550 × 760 mm (W × D × H)
- Exterior dimensions: 810 × 760 × 940 mm (W × D × H)
- Weight, empty: 85 kg
- Voltage: 230 V, 50/60 Hz
- Nominal power: 2.25 kW
- Temperature uniformity at 150 °C: ±1.8 K
- Temperature fluctuation at 150 °C: ±0.8 K
- Heating-up time to 150 °C: 50 min
- Recovery time after a 30 s door opening at 150 °C: 20 min
- Air change rate at 100 °C: 3 x/h
- Shelves, standard / maximum: 2/8
- Load per rack: 40 kg
- Permitted load: 270 kg
- Energy consumption at 100 °C: 195 Wh/h
- Energy consumption at 150 °C: 355 Wh/h
- Wall clearance, side: 100 mm
- Wall clearance, back: 160 mm
- Technical Information Sheet:
- Data Sheet:
Recently viewed
You may also like
Questions about Drying and heating chambers ED260-230V
What is this article?
Drying and heating chambers ED260-230V is the article on this page. Luminix Health distributes Binder for laboratory use. It sits in Drying ovens & climate chambers, inside Heating, drying & cooling, in Lab instruments.
A drying oven holds a temperature above ambient to drive off water or to condition a sample. A climate chamber also holds humidity. Uniformity across the chamber, not only the set point, decides whether two samples on different shelves saw the same conditions.
Temperature equipment either holds a set point or drives a sample toward one. An oven dries. A furnace reaches the temperatures of ashing and melting. A bath surrounds a vessel with water or oil. A circulator moves that fluid. An incubator holds the mild warmth of a culture. An autoclave uses steam under pressure to sterilise. The number that matters is the temperature the article actually reaches, not the number painted on the dial. Temperature is part of the international system kept by the BIPM and compared by EURAMET.
