Description

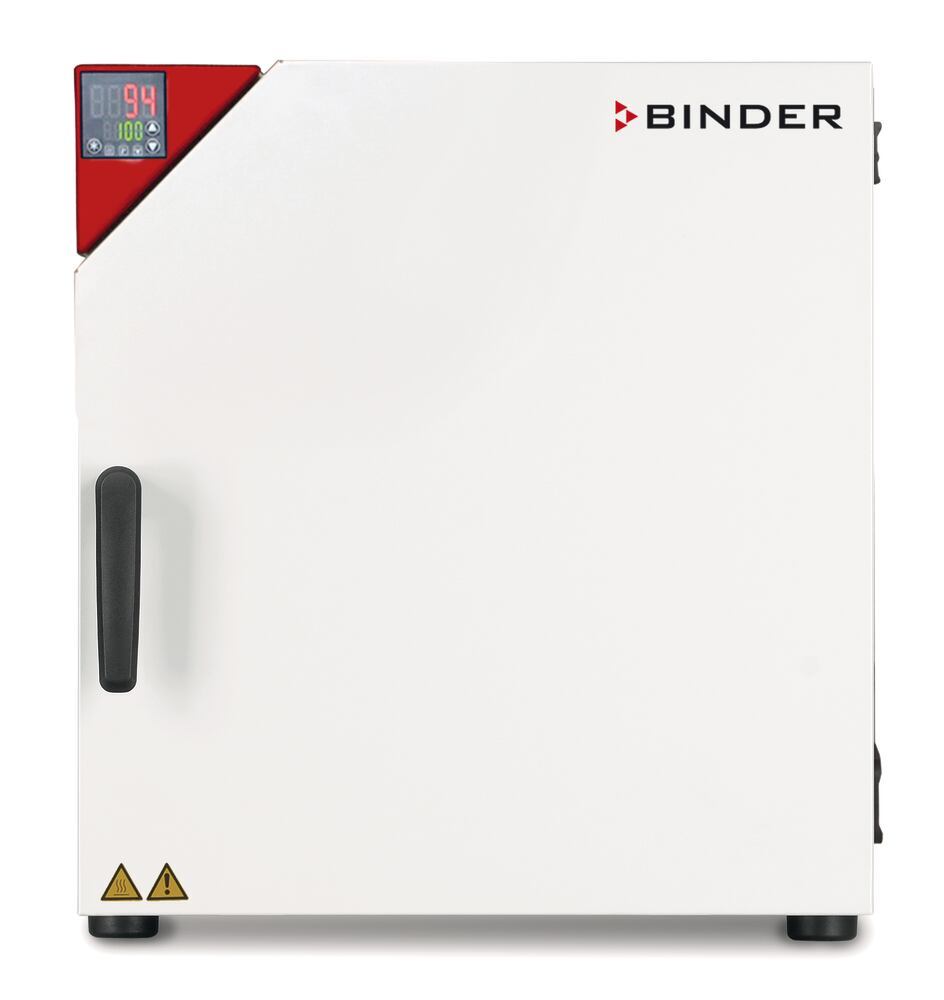

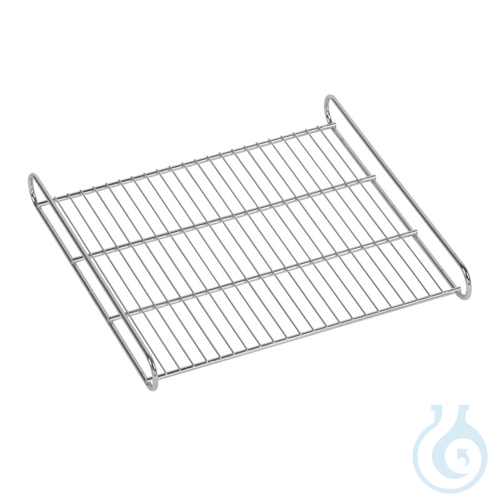

Drying and heating oven EDS 56-230V is a Solid.Line laboratory oven for drying and warm storage in research and quality assurance. Temperature range extends from +7 °C above ambient up to +250 °C, supported by APT.line™ preheating chamber technology and natural convection for uniform thermal conditions. An adjustable exhaust air flap and a controller with timer function allow practical process control, while one chrome-plated rack with bottom support is included for sample loading. An integrated temperature selector limiter Class 2 (DIN 12880) with optical alarm adds a defined safety layer during operation. Nominal chamber volume is 56 l; controllable parameter is temperature, without forced-air circulation. Interface is Ethernet; mains connection uses a Euro plug (Type C). Net weight is 42 kg and gross weight 44 kg. From manufacturer Binder, the unit is aimed at laboratories that need proven reliability for drying and warm holding tasks rather than complex multi-parameter programmes. Suitable for routine thermal processing in R&D and QC environments where natural convection and a clear temperature limit are preferred.
This article is part of Drying ovens & climate chambers, in Heating, drying & cooling.
Key features
- Pack size: 1 pc(s)
- Model: EDS 56-230V
- Nominal volume: 56 l
- Temperature range: +7 °C above ambient to +250 °C
- Convection: Natural convection
- Interface: Ethernet
- Manufacturer: Binder
- UNSPSC: 41104502
- Interior dimensions: 400 × 350 × 440 mm (W × D × H)
- Exterior dimensions: 614 × 577 × 625 mm (W × D × H)
- Weight, empty: 36 kg
- Voltage: 230 V, 50/60 Hz
- Nominal power: 1.05 kW
- Temperature uniformity at 150 °C: ±3.4 K
- Temperature fluctuation at 150 °C: ±0.8 K
- Heating-up time to 150 °C: 60 min
- Recovery time after a 30 s door opening at 150 °C: 45 min
- Shelves, standard / maximum: 1/3
- Load per rack: 15 kg
- Permitted load: 45 kg
- Energy consumption at 150 °C: 210 Wh/h
- Wall clearance, side: 100 mm
- Wall clearance, back: 160 mm
- Technical Information Sheet:
- Data Sheet:
Recently viewed
You may also like
Questions about Drying and heating chambers EDS 56-230V
What is this article?
Drying and heating chambers EDS 56-230V is the article on this page. Luminix Health distributes Binder for laboratory use. It sits in Drying ovens & climate chambers, inside Heating, drying & cooling, in Lab instruments.
A drying oven holds a temperature above ambient to drive off water or to condition a sample. A climate chamber also holds humidity. Uniformity across the chamber, not only the set point, decides whether two samples on different shelves saw the same conditions.
Temperature equipment either holds a set point or drives a sample toward one. An oven dries. A furnace reaches the temperatures of ashing and melting. A bath surrounds a vessel with water or oil. A circulator moves that fluid. An incubator holds the mild warmth of a culture. An autoclave uses steam under pressure to sterilise. The number that matters is the temperature the article actually reaches, not the number painted on the dial. Temperature is part of the international system kept by the BIPM and compared by EURAMET.
