Description

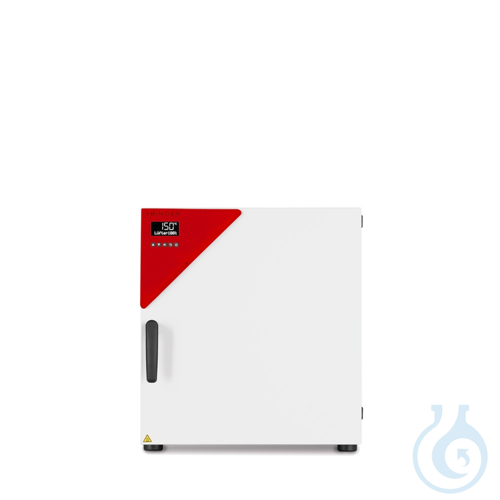

Drying and heating oven FD 56UL-120V is a forced-convection laboratory oven for fast drying and sterilisation work. It offers a nominal volume of 60 l and a temperature range from +10 °C above ambient up to +300 °C, with high temperature accuracy provided by APT.line™ technology. Compared with typical market devices it can save up to 30 % energy, while homogeneous temperature distribution, rapid dynamics and a powerful fan help shorten process times.
This article is part of Drying ovens & climate chambers, in Heating, drying & cooling.
The controller with LCD display, electromechanical exhaust-flap control, two chrome-plated shelves and a USB port for data recording support everyday laboratory use. An integrated class 2 temperature selector limiter to DIN 12880 with optical alarm adds operational safety. The stackable housing and ergonomic handle design ease handling and installation. This FD Avantgarde.Line unit from manufacturer Binder also includes an Ethernet interface and a United States type A/B mains plug, making it a practical choice for routine drying, heating and sterilisation tasks in research and quality-control laboratories.
Key features
- Pack size: 1 pc
- Nominal volume: 60 l
- Temperature range: +10 °C above ambient to +300 °C
- Convection: Forced air
- Controller: LCD with electromechanical exhaust flap
- Temperature limiter: Class 2 (DIN 12880) with optical alarm
- Manufacturer: Binder
- UNSPSC: 41104502
- Interior dimensions: 400 × 345 × 440 mm (W × D × H)
- Exterior dimensions: 560 × 565 × 625 mm (W × D × H)
- Weight, empty: 41 kg
- Voltage: 120 V, 60 Hz
- Nominal power: 1.2 kW
- Temperature uniformity at 150 °C: ±1.7 K
- Temperature fluctuation at 150 °C: ±0.3 K
- Heating-up time to 150 °C: 15 min
- Recovery time after a 30 s door opening at 150 °C: 4 min
- Air change rate at 100 °C: 80 x/h
- Shelves, standard / maximum: 2/4
- Load per rack: 30 kg
- Permitted load: 70 kg
- Energy consumption at 100 °C: 180 Wh/h
- Energy consumption at 150 °C: 290 Wh/h
- Wall clearance, side: 100 mm
- Wall clearance, back: 160 mm
- Sound pressure level: 43 dB(A)
- Technical Information Sheet:
- Data Sheet:
Recently viewed
You may also like
Questions about Drying and heating chambers FD 56UL-120V
What is this article?
Drying and heating chambers FD 56UL-120V is the article on this page. Luminix Health distributes Binder for laboratory use. It sits in Drying ovens & climate chambers, inside Heating, drying & cooling, in Lab instruments.
A drying oven holds a temperature above ambient to drive off water or to condition a sample. A climate chamber also holds humidity. Uniformity across the chamber, not only the set point, decides whether two samples on different shelves saw the same conditions.
Temperature equipment either holds a set point or drives a sample toward one. An oven dries. A furnace reaches the temperatures of ashing and melting. A bath surrounds a vessel with water or oil. A circulator moves that fluid. An incubator holds the mild warmth of a culture. An autoclave uses steam under pressure to sterilise. The number that matters is the temperature the article actually reaches, not the number painted on the dial. Temperature is part of the international system kept by the BIPM and compared by EURAMET.
