Description

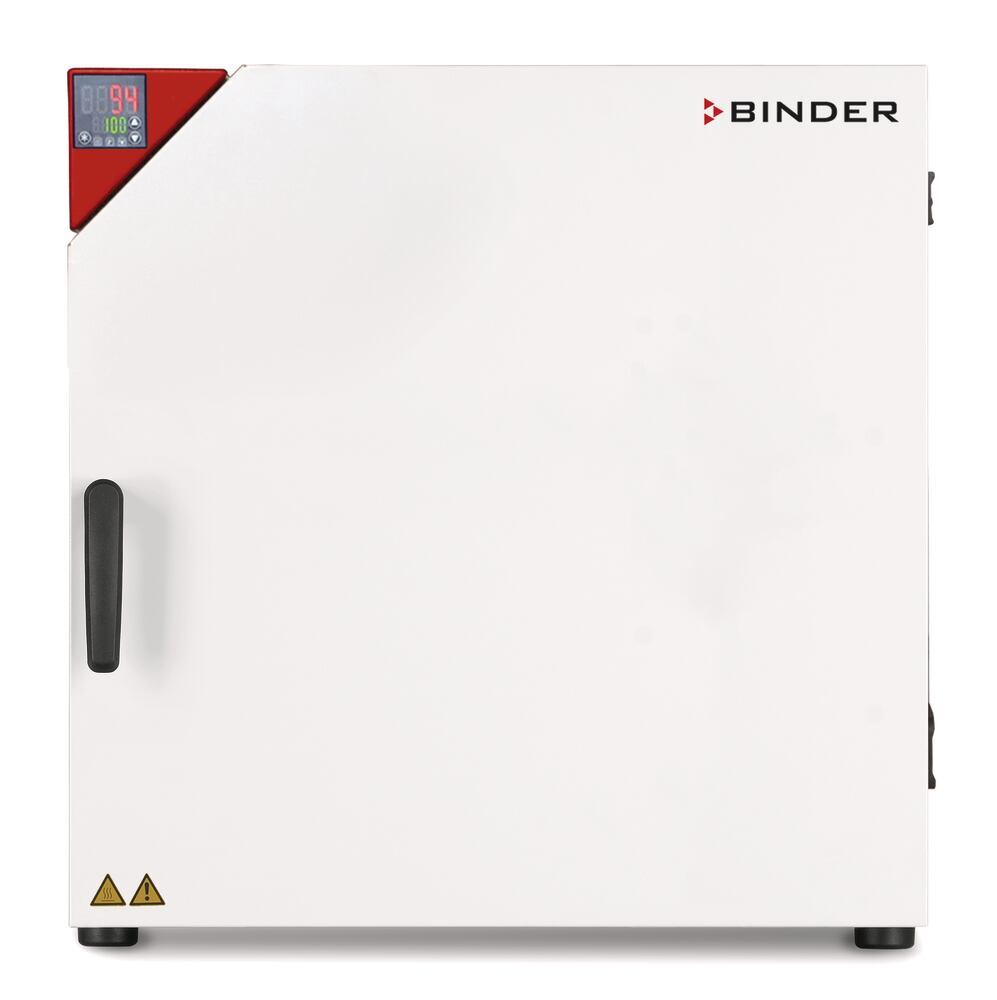

Drying and heating oven FDS 56-230V is a Solid.Line laboratory oven for drying and warm storage in research and quality assurance. It offers a nominal volume of 56 l and a temperature range from +10 °C above ambient temperature up to +250 °C. APT.line™ preheating chamber technology with forced-air circulation supports even heat distribution throughout the working space. An adjustable exhaust air flap and a controller with timer function enable practical process control. The unit is supplied with one chrome-plated rack including floor support. An integrated temperature selector limiter Class 2 (DIN 12880) with optical alarm provides defined thermal safety monitoring. Temperature is the controllable parameter; program memory and an Ethernet interface are included. This drying and heating oven from manufacturer Binder is aligned to Solid.Line performance for drying and warm-holding applications. Power connection uses a Euro plug (Type C). Net weight is 42 kg and gross weight 44 kg, matching a compact 56 l laboratory oven format.
This article is part of Drying ovens & climate chambers, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Nominal volume: 56 l
- Temperature range: +10 °C above ambient to +250 °C
- Air circulation: Forced air (Umluft)
- Technology: APT.line™ preheating chamber
- Temperature limiter: Class 2 (DIN 12880) with optical alarm
- Manufacturer: Binder
- UNSPSC: 41104502
- Interior dimensions: 400 × 310 × 440 mm (W × D × H)
- Exterior dimensions: 614 × 577 × 625 mm (W × D × H)
- Weight, empty: 35 kg
- Voltage: 230 V, 50/60 Hz
- Nominal power: 1.1 kW
- Temperature uniformity at 150 °C: ±2.6 K
- Temperature fluctuation at 150 °C: ±0.4 K
- Heating-up time to 150 °C: 15 min
- Recovery time after a 30 s door opening at 150 °C: 5 min
- Air change rate at 100 °C: 4 x/h
- Shelves, standard / maximum: 1/3
- Load per rack: 15 kg
- Permitted load: 45 kg
- Energy consumption at 150 °C: 290 Wh/h
- Wall clearance, side: 100 mm
- Wall clearance, back: 160 mm
- Sound pressure level: 43 dB(A)
- Technical Information Sheet:
- Data Sheet:
Recently viewed
You may also like
Questions about Drying and heating chambers FDS 56-230V
What is this article?
Drying and heating chambers FDS 56-230V is the article on this page. Luminix Health distributes Binder for laboratory use. It sits in Drying ovens & climate chambers, inside Heating, drying & cooling, in Lab instruments.
A drying oven holds a temperature above ambient to drive off water or to condition a sample. A climate chamber also holds humidity. Uniformity across the chamber, not only the set point, decides whether two samples on different shelves saw the same conditions.
Temperature equipment either holds a set point or drives a sample toward one. An oven dries. A furnace reaches the temperatures of ashing and melting. A bath surrounds a vessel with water or oil. A circulator moves that fluid. An incubator holds the mild warmth of a culture. An autoclave uses steam under pressure to sterilise. The number that matters is the temperature the article actually reaches, not the number painted on the dial. Temperature is part of the international system kept by the BIPM and compared by EURAMET.
