Description

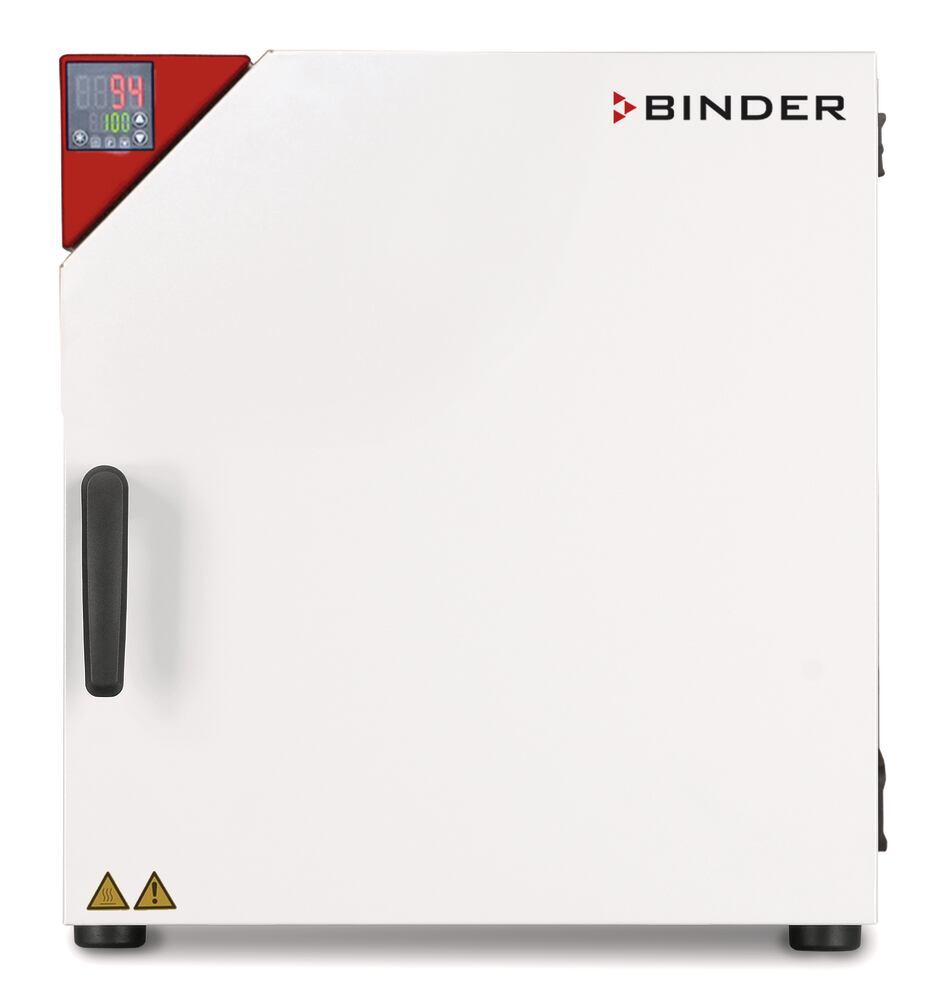

Drying and heating oven FDS115-230V is a Solid.Line laboratory unit for drying and warm storage, with a nominal volume of 115 l and a temperature range from +10 °C above ambient up to +250 °C. APT.line™ preheating chamber technology and forced-air circulation support homogeneous temperature distribution, while an adjustable exhaust air flap aids process control. The controller includes a timer function and program memory; temperature is the controllable parameter. One chrome-plated shelf with floor supports is supplied. An integrated class 2 temperature selector limiter to DIN 12880 provides an optical alarm for added operational safety. An Ethernet interface enables networked use, and the unit is fitted with a Euro plug (type C). With a net weight of 59 kg and gross weight of 61 kg, this Binder oven is suited to research and quality-assurance workflows where reliable drying and warm holding are required. Performance features of the Solid.Line series are application-oriented for routine laboratory duty.
This article is part of Drying ovens & climate chambers, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Nominal volume: 115 l
- Temperature range: +10 °C above ambient to +250 °C
- Max. operating temperature: +250 °C
- Forced-air circulation: Yes
- Interface: Ethernet
- Manufacturer: Binder
- UNSPSC: 41104502
- Interior dimensions: 550 × 350 × 550 mm (W × D × H)
- Exterior dimensions: 764 × 616 × 735 mm (W × D × H)
- Weight, empty: 48 kg
- Voltage: 230 V, 50/60 Hz
- Nominal power: 1.3 kW
- Temperature uniformity at 150 °C: ±2 K
- Temperature fluctuation at 150 °C: ±0.4 K
- Heating-up time to 150 °C: 20 min
- Recovery time after a 30 s door opening at 150 °C: 8 min
- Air change rate at 100 °C: 2 x/h
- Shelves, standard / maximum: 1/5
- Load per rack: 20 kg
- Permitted load: 75 kg
- Energy consumption at 150 °C: 340 Wh/h
- Wall clearance, side: 100 mm
- Wall clearance, back: 160 mm
- Sound pressure level: 48 dB(A)
- Technical Information Sheet:
- Data Sheet:
