Description

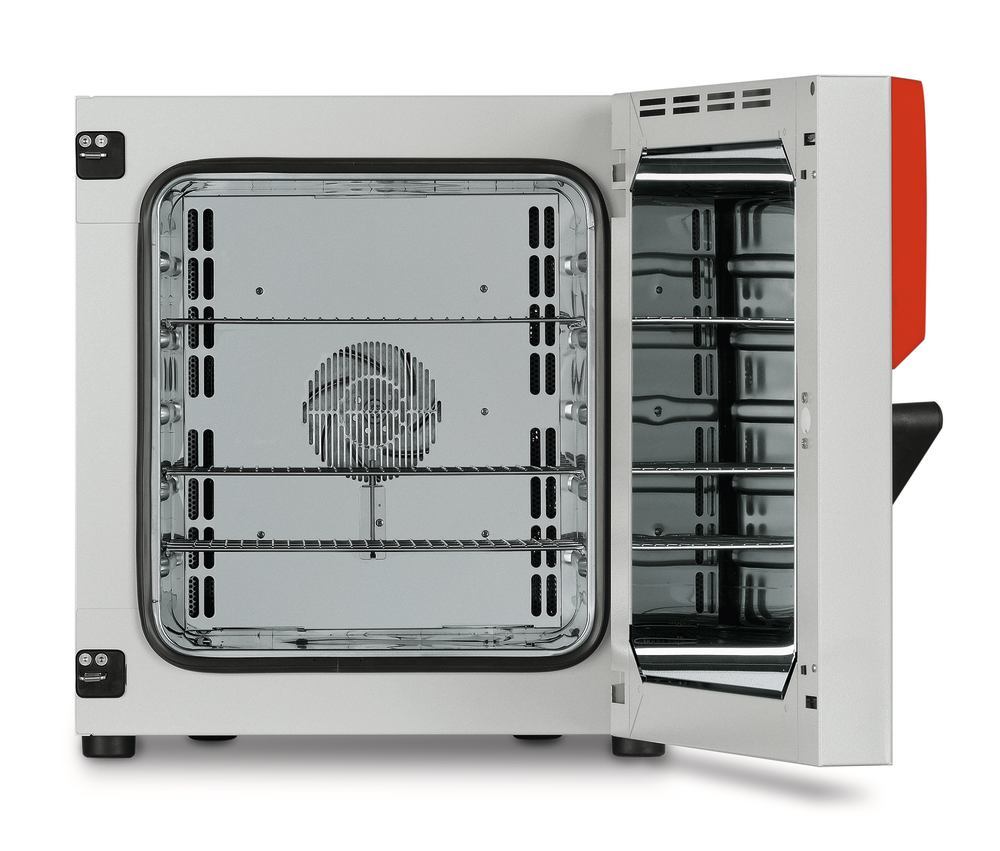

Drying and heating oven FED 56-230V is a forced-convection laboratory oven with a nominal volume of 60 l, covering a temperature range from +10 °C above ambient temperature to +300 °C. High temperature accuracy is achieved through APT.line™ technology, and the unit is up to 30% more energy-efficient than typical comparable devices. Adjustable fan speed together with electromechanical control of the exhaust air flap enables precise management of temperature and circulating-air conditions. The controller offers an LCD display with extended time functions, programme memory and timer capability for flexible process control. Two chrome-plated shelves are supplied as standard, and the chamber is stackable to save bench space. An integrated class 2 temperature selection limiter according to DIN 12880 provides an optical alarm. Ergonomic handle design, an Ethernet interface and a USB port for data recording support everyday laboratory use. Belonging to the FED Avantgarde.Line series from manufacturer Binder, this 230 V model with Euro plug (Type C) is suited to drying, heating and general thermal applications in research and quality-control environments.
This article is part of Drying ovens & climate chambers, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Nominal volume: 60 l
- Temperature range: +10 °C above ambient to +300 °C
- Forced convection: Yes
- Shelves included: 2 chrome-plated
- Power plug: Euro plug (Type C)
- Manufacturer: Binder
- UNSPSC: 41104502
- Interior dimensions: 400 × 345 × 440 mm (W × D × H)
- Exterior dimensions: 560 × 565 × 625 mm (W × D × H)
- Weight, empty: 39 kg
- Voltage: 230 V, 50/60 Hz
- Nominal power: 1.1 kW
- Temperature uniformity at 150 °C: ±1.4 K
- Temperature fluctuation at 150 °C: ±0.3 K
- Heating-up time to 150 °C: 15 min
- Recovery time after a 30 s door opening at 150 °C: 4 min
- Air change rate at 100 °C: 80 x/h
- Shelves, standard / maximum: 2/4
- Load per rack: 30 kg
- Permitted load: 70 kg
- Energy consumption at 100 °C: 180 Wh/h
- Energy consumption at 150 °C: 290 Wh/h
- Wall clearance, side: 100 mm
- Wall clearance, back: 160 mm
- Sound pressure level: 43 dB(A)
- Technical Information Sheet:
- Data Sheet:
