Description

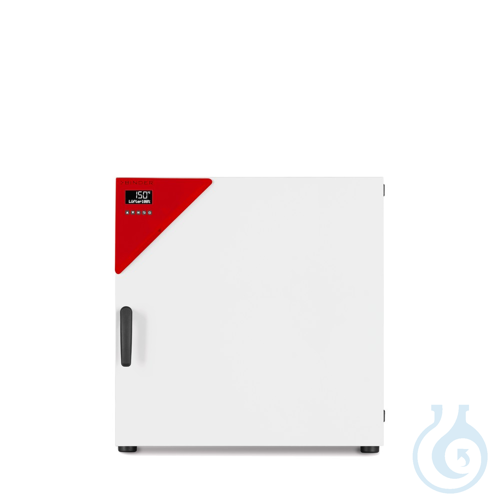

Drying and heating oven FED115UL-120V is a forced-air laboratory oven for temperatures from +10 °C above ambient up to +300 °C. Offering a nominal volume of 116 l, this Avantgarde.Line model from manufacturer Binder delivers high temperature accuracy via APT.line™ technology together with adaptable control of temperature and air circulation for drying, heating and related applications. Fan speed is adjustable and the exhaust air flap is electromechanically controlled, while the controller provides an LCD display and extended time functions with program memory. Two chrome-plated racks are supplied, and the unit is stackable to save bench or floor space. An integrated Class 2 temperature selector limiter according to DIN 12880 gives optical alarm protection. Connectivity includes Ethernet plus a USB port for data recording, supporting process documentation. The design is described as up to 30% more energy-efficient than typical comparable devices. The FED115UL-120V version is prepared for 120 V operation with a United States Type A/B mains plug, suited to North American laboratories that need flexible, high-performance thermal processing under controlled forced-air conditions.
This article is part of Drying ovens & climate chambers, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Nominal volume: 116 l
- Temperature range: +10 °C above ambient to +300 °C
- Max. operating temperature: 300 °C
- Forced air circulation: yes
- Interface: USB
- Manufacturer: Binder
- UNSPSC: 41104502
- Interior dimensions: 550 × 385 × 550 mm (W × D × H)
- Exterior dimensions: 710 × 605 × 705 mm (W × D × H)
- Weight, empty: 54 kg
- Voltage: 120 V, 60 Hz
- Nominal power: 1.4 kW
- Temperature uniformity at 150 °C: ±1.2 K
- Temperature fluctuation at 150 °C: ±0.3 K
- Heating-up time to 150 °C: 18 min
- Recovery time after a 30 s door opening at 150 °C: 4 min
- Air change rate at 100 °C: 32 x/h
- Shelves, standard / maximum: 2/5
- Load per rack: 30 kg
- Permitted load: 150 kg
- Energy consumption at 100 °C: 215 Wh/h
- Energy consumption at 150 °C: 340 Wh/h
- Wall clearance, side: 100 mm
- Wall clearance, back: 160 mm
- Sound pressure level: 43 dB(A)
- Technical Information Sheet:
- Data Sheet:
Recently viewed
You may also like
Questions about Drying and heating chambers FED115UL-120V
What is this article?
Drying and heating chambers FED115UL-120V is the article on this page. Luminix Health distributes Binder for laboratory use. It sits in Drying ovens & climate chambers, inside Heating, drying & cooling, in Lab instruments.
A drying oven holds a temperature above ambient to drive off water or to condition a sample. A climate chamber also holds humidity. Uniformity across the chamber, not only the set point, decides whether two samples on different shelves saw the same conditions.
Temperature equipment either holds a set point or drives a sample toward one. An oven dries. A furnace reaches the temperatures of ashing and melting. A bath surrounds a vessel with water or oil. A circulator moves that fluid. An incubator holds the mild warmth of a culture. An autoclave uses steam under pressure to sterilise. The number that matters is the temperature the article actually reaches, not the number painted on the dial. Temperature is part of the international system kept by the BIPM and compared by EURAMET.
