Description

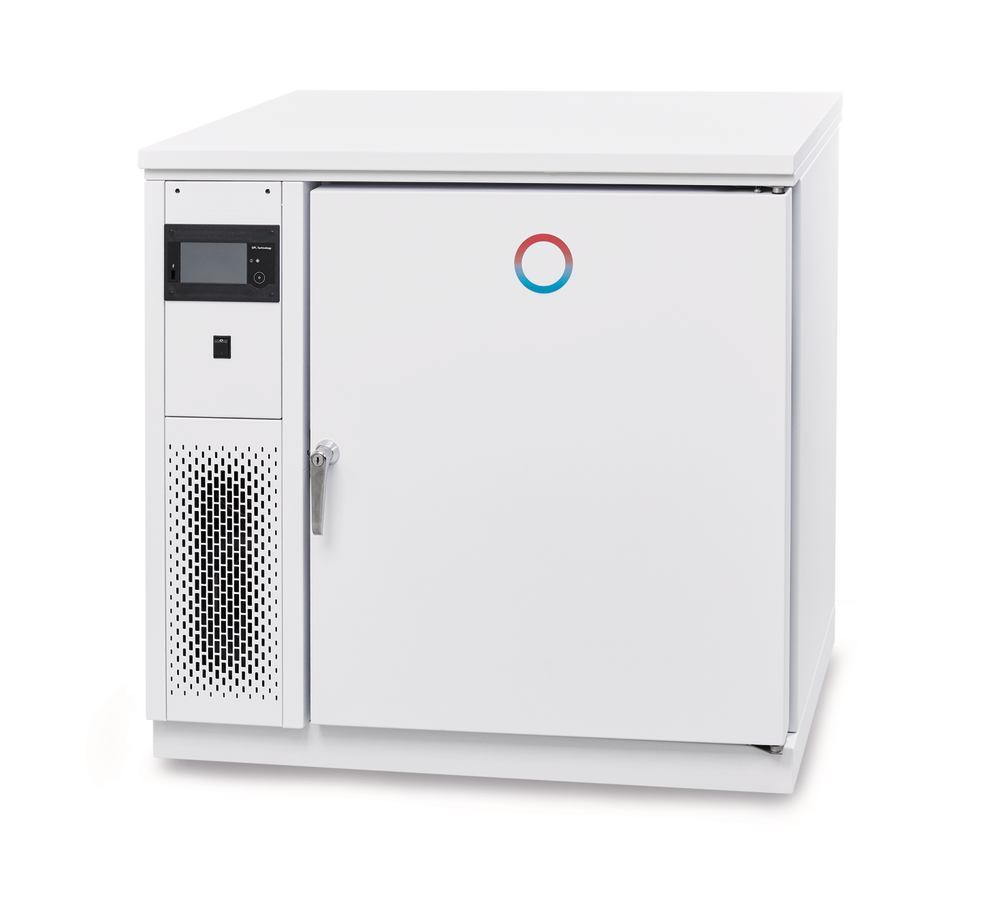

The LAUDA Versafreeze VF 15085 is a compact laboratory ultra-low temperature freezer intended for long-term storage and quality assurance of organic substances and other materials. Its working range of −86 to −50 °C combines temperature constancy of ±2 K with homogeneity of 3 K at −86 °C in a 129 L usable chamber (interior 480 × 480 × 560 mm). The stainless-steel interior has one compartment protected by an insulated door against cold loss. A 4,3'' touchscreen enables convenient entry and retrieval of all safety-relevant values, with adjustable over- and under-temperature alarm limits and password-protected user management. Electronic alarm functions, a potential-free contact for site monitoring systems, battery buffering of display and alarms during power failure, and an integrated data logger support reliable oversight. Supplied from manufacturer Lauda, the unit uses tightly laid cooling coils for rapid pull-down and stable uniformity, together with an energy-saving, maintenance-free refrigeration plant running natural refrigerants R-290 and R-170. Vacuum insulation increases storage volume relative to footprint; two standard 13 mm feed-throughs accept control sensors, and a magnetic sealing system prevents gasket freeze-on. The cabinet is under-bench capable or freestanding. External dimensions 904 × 776 × 865 mm; net weight 167 kg; cool-down 20 °C to −86 °C in 5 h; energy use 9,3 kWh/d at −80 °C; mains 230 V; 50 Hz.
This article is part of Circulators, chillers & thermostats, in Heating, drying & cooling.
Key features
- Pack size: 1 piece
- Working temperature range: −86 … −50 °C
- Usable volume: 129 L
- Temperature constancy: ±2 K
- Interior: stainless steel, 1 insulated compartment
- Power supply: 230 V; 50 Hz
- Manufacturer: Lauda
- UNSPSC: 41103020
- Ambient temperature: 15...28 °C
- Exterior dimensions: 904 × 776 × 865 mm
- Weight: 167 kg
- Voltage: 230 V; 50 Hz
- Technical Information Sheet:
Recently viewed
You may also like
Questions about LAUDA Versafreeze VF 15085 Upright Freezer 230 V; 50 Hz
What is this article?
LAUDA Versafreeze VF 15085 Upright Freezer 230 V; 50 Hz is the article on this page. Luminix Health distributes Lauda for laboratory use. It sits in Circulators, chillers & thermostats, inside Heating, drying & cooling, in Lab instruments.
A circulator or thermostat holds a bath liquid at a set temperature and pumps it through a jacket. A chiller is the same idea aimed below ambient. The temperature range, the cooling power and the pump flow are the three numbers. The fluid has to match the range.
Temperature equipment either holds a set point or drives a sample toward one. An oven dries. A furnace reaches the temperatures of ashing and melting. A bath surrounds a vessel with water or oil. A circulator moves that fluid. An incubator holds the mild warmth of a culture. An autoclave uses steam under pressure to sterilise. The number that matters is the temperature the article actually reaches, not the number painted on the dial. Temperature is part of the international system kept by the BIPM and compared by EURAMET.
