Description

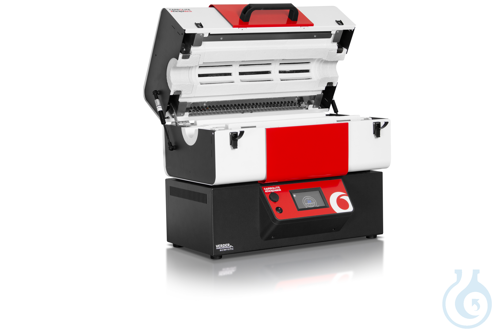

Tube furnace TS1 12/60/450 with EPC3016P1 PID controller is a horizontal split-tube furnace rated to 1200 °C. Resistance-wire heating elements are embedded in high-quality vacuum-formed fibre insulation. Heated length is 450 mm, supporting a 730 mm tube under air atmosphere or 900 mm under protective gas, with a maximum tube outer diameter of 60 mm without working tube. Furnace body external dimensions are 560 × 645 × 480 mm (H × W × D); the control unit measures 220 × 635 × 480 mm. Maximum power is 2,0 kW, a Type N thermocouple is fitted, and total weight is 49 kg; electrical supply is 230 V single-phase 50 Hz. The furnace body arrives mounted on the control unit and can be removed for direct bench placement via a 2 m detachable interconnect cable. This model from manufacturer Carbolite Gero is equipped with the EPC3016P1 digital PID controller offering 24 freely programmable segments, self-tuning, thermocouple-break protection, electronic setpoint limitation, digital temperature setting with actual and setpoint display, up to two control tracks and an Ethernet port on the rear of the control housing. Operation requires one of the matching air, protective-gas or vacuum accessory packages.
This article is part of Muffle & tube furnaces, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Maximum temperature: 1200 °C
- Heated length: 450 mm
- Max. tube outer diameter: 60 mm
- Maximum power: 2,0 kW
- Controller: EPC3016P1 PID, 24 segments
- Technical Information Sheet:
