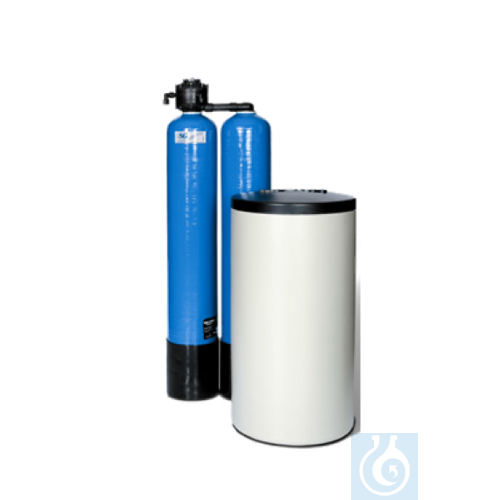

Double softener VM 60

Dual Softener VM 60

These fully automated, quantity-controlled, mechanical twin water softening systems offer, among other aspects, continuous availability of soft water with low salt and water consumption and very easy installation. Thanks to its synthetic components the system is non-corroding. The systems are monitored with a hydraulic control button. Therefore, a Power supply is not required. The systems are powered para flow and ensure maximum reduction of hardness with full use of volume capacity.

This means that there are no downtimes, which has a more positive effect on the chemical and microbiological parameters than with conventional pendulum systems.
Regeneration is only carried out with soft water in countercurrent; loading of the resin with hardeners during rinsing is thus excluded;
Brine preparation only with soft water.

Design:
2 glass-fiber-reinforced resin tanks including cation exchange material and support gravel (the filling material is included with the plant delivery)
1 complete two-tank valve combination for top mounting including integrated water metering device
1 set of hardening disks for adaptation to the respective city water conditions
1 brine tank made of transparent PE complete with brine system and protection tube
1 raw water hose
1 hardness measuring set

Type: VM 60
Capacity max: 39 l/min
capacity min: 4 l/min

Regeneration:
Salt consumption / reg.: 1.8 kg
Regeneration time: 45 min
Water consumption / reg.: 132 l
Backwash capacity: 8 l/min

Technical data:
Resin quantity: 2 x 20 l
Salt supply: 114 kg
Operating pressure min/max: 2,5 - 8 bar
connection hard/soft water: 1'' / 1-1/4''
Temperature min/max: 2 - 49°C

Dimensions and weight:
Height: 1200 mm
width: 460 mm
depth: 760 mm
Weight: 75 kg

Capacity specifications:

Hardness- Hardness range available
disc °dH to soft water quantity

1 4 12000
2 7 6000
3 10 4000
4 14 3000
5 17 2400
6 20 2000
7 24 1710
8 26 1500
