Description

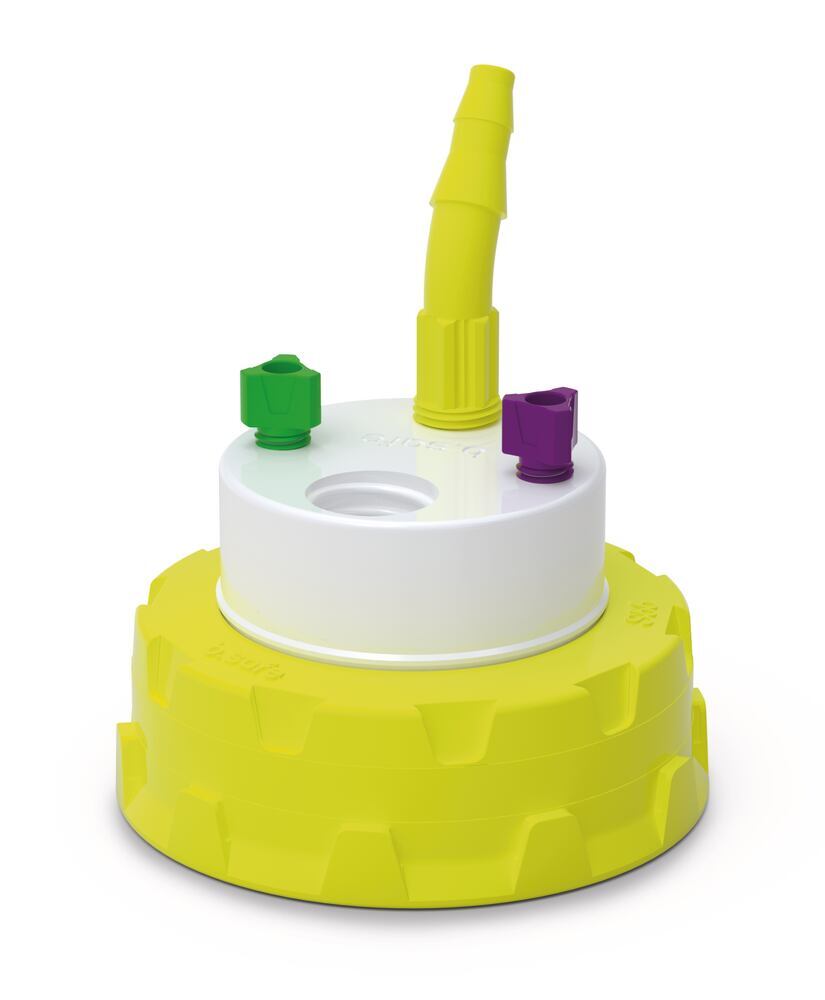

b.safe Waste Cap S55 is a laboratory screw cap for S55 canister threads, combining a glass-fibre-reinforced polypropylene (PP-GF) body with a freely rotatable PTFE insert. Two UNF 1/4″ capillary connections accept PFA fittings for outer diameters 1,6 mm, 2,2 mm and 3,2 mm, enabling secure transfer of solvent waste from HPLC or related systems. Colour-coded PFA fittings are supplied as two green (Ø 1,6 mm), two violet (Ø 2,2 mm) and two yellow (Ø 3,2 mm), together with one milky-white PFA blind fitting for any unused port. An NPT 1/8″ stepped hose olive covers tubing inner diameters from 5,5 to 8,0 mm, and a GL14 thread is ready for a b.safe exhaust filter (not included). Offered by manufacturer Bohlender, this single-piece assembly supports closed waste collection on S55 canisters while keeping vapour release under control. The rotatable insert simplifies hose layout without opening the canister seal. Net weight is 0,098 kg. Designed for routine analytical laboratory solvent disposal with mixed capillary and flexible tubing lines.
This article is part of HPLC fittings, tubing & inline filters, in HPLC columns & accessories.
Key features
- Pack size: 1 pc
- Cap material: PP-GF
- Insert material: PTFE, freely rotatable
- Capillary connections: 2 × UNF 1/4″
- PFA fittings: 2 × Ø 1,6 mm, 2 × Ø 2,2 mm, 2 × Ø 3,2 mm plus 1 blind fitting
- Hose olive: NPT 1/8″ for tubing ID 5,5–8,0 mm
Recently viewed
You may also like
Browse related categories
Category
Sub-category
HPLC fittings, tubing & inline filters
Catalogue
Brand
Questions about b.safe Waste Cap S55, 2x UNF1/4'', 1x GL14, 1x NPT1/8'' Screw cap S55 made of
What is this article?
b.safe Waste Cap S55, 2x UNF1/4'', 1x GL14, 1x NPT1/8'' Screw cap S55 made of is the article on this page. Luminix Health distributes Bohlender for laboratory use. It sits in HPLC fittings, tubing & inline filters, inside HPLC columns & accessories, in Chromatography equipment.
HPLC fittings and tubing are numbered by bore. A wide bore after the column broadens the peaks. Finger-tight and wrench fittings, and stainless against PEEK, are different pressure ratings. An inline filter is the last screen before the column, and it clogs on purpose so the column does not.
An HPLC column is a tube packed, or coated, with a stationary phase. The sample is carried through it by a liquid, and the compounds leave at different times. The phase, the particle size, the length and the internal diameter decide the separation. A guard column is a short sacrificial piece in front of the analytical column. Fittings and tubing have a bore that either preserves the peak or smears it. Compound names follow IUPAC. Data are on PubChem. Method grades often cite the European Pharmacopoeia or USP.
Which category should I open next?
The category is HPLC columns & accessories. The sub-category is HPLC fittings, tubing & inline filters. The catalogue is Chromatography equipment.
Shelves beside this one are HPLC columns, HPLC guard columns and HPLC accessories.
What should I check before I order?
When this page shows a safety data sheet, use that manufacturer file. Hazard text does not belong in the sales description. For a pack size, a grade or a certificate that is not on the page, send a quote request or contact the team.
How does ordering and shipping work?
Luminix Health distributes this article from the heart of Europe. Delivery across Europe, two to five days when in stock. Standard delivery is free from €250 excl. VAT. Cold-chain goods and dangerous goods under ADR are never included in that free delivery. The terms are in the Shipping Policy. The full brand index is on shop by brand. Who we are is on about us.
