Description

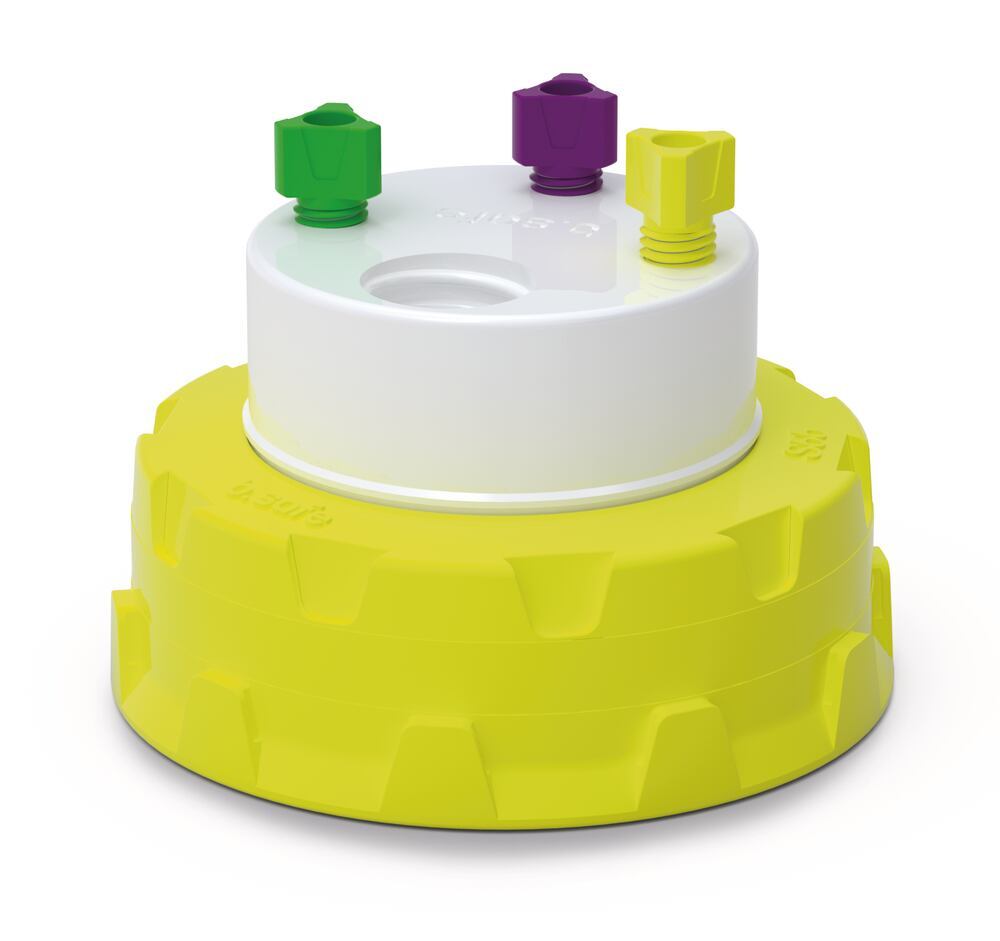

b.safe Waste Cap S55 is a screw cap for S55 canister threads, built from yellow glass-fibre-reinforced polypropylene (PP-GF) with a freely rotatable PTFE insert. Three UNF 1/4″ capillary ports take PFA fittings for tubing outer diameters of 1,6 mm, 2,2 mm and 3,2 mm, so multiple HPLC or solvent lines can be routed safely into a waste canister. The supply set includes three green fittings (Ø 1,6 mm), three violet fittings (Ø 2,2 mm) and three yellow fittings (Ø 3,2 mm), plus two milky-white PFA blind fittings to close unused connections. A GL14 thread is provided for screwing in a b.safe exhaust filter (filter not included), supporting vapour control during collection. This configuration from manufacturer Bohlender is intended for closed-system laboratory waste handling on standard S55 canisters. The freely turning insert lets tubing be oriented without loosening the cap. Supplied as one piece; net weight 0,102 kg. Suitable for analytical and preparative workflows that require several capillary waste lines on a single canister.
This article is part of HPLC fittings, tubing & inline filters, in HPLC columns & accessories.
Key features
- Pack size: 1 pc
- Cap material: yellow PP-GF
- Insert material: PTFE, freely rotatable
- Capillary connections: 3 × UNF 1/4″
- PFA fittings: 3 × Ø 1,6 mm, 3 × Ø 2,2 mm, 3 × Ø 3,2 mm
- Blind fittings: 2 × milky-white PFA
Recently viewed
You may also like
Browse related categories
Category
Sub-category
HPLC fittings, tubing & inline filters
Catalogue
Brand
Questions about b.safe Waste Cap S55, 3x UNF1/4'', 1x GL14 Screw cap S55 made of PP-yellow,
What is this article?
b.safe Waste Cap S55, 3x UNF1/4'', 1x GL14 Screw cap S55 made of PP-yellow, is the article on this page. Luminix Health distributes Bohlender for laboratory use. It sits in HPLC fittings, tubing & inline filters, inside HPLC columns & accessories, in Chromatography equipment.
HPLC fittings and tubing are numbered by bore. A wide bore after the column broadens the peaks. Finger-tight and wrench fittings, and stainless against PEEK, are different pressure ratings. An inline filter is the last screen before the column, and it clogs on purpose so the column does not.
An HPLC column is a tube packed, or coated, with a stationary phase. The sample is carried through it by a liquid, and the compounds leave at different times. The phase, the particle size, the length and the internal diameter decide the separation. A guard column is a short sacrificial piece in front of the analytical column. Fittings and tubing have a bore that either preserves the peak or smears it. Compound names follow IUPAC. Data are on PubChem. Method grades often cite the European Pharmacopoeia or USP.
