Description

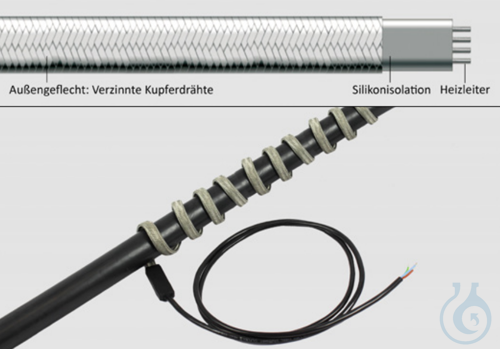

Heating tape PILZ® WBS silicone-insulated is a flexible heating band rated at 200 W with a maximum operating temperature of 200 °C. Silicone insulation with a protective earth braid of tinned copper wires encloses four heating conductors, providing a specific power of 50 W/m over a length of 4,0 m. Cross-section measures 13,0 × 5,0 mm with a minimum bend radius greater than 9 mm, enabling easy mounting on pipes, vessels and laboratory apparatus. Moisture-protected build and a factory-fitted 1,5 m connection lead for 230 VAC operation make the tape suitable for laboratory, technical centre and industrial environments that need fast heat-up or higher process temperatures. Constant high power per metre requires good thermal contact with the object; heating tape must not be laid overlapping or in direct self-contact, and the heater surface runs hotter than the workpiece when energised. Operation together with a temperature controller is always recommended for fixed-resistance heating tapes. This PILZ® WBS model from manufacturer Winkler is supplied as one piece for flexible, economical heating applications.
This article is part of Heating mantles, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Power: 200 W
- Length: 4,0 m
- Max. temperature: 200 °C
- Operating voltage: 230 V
- Dimensions: 13,0 × 5,0 mm
- Technical Information Sheet:
