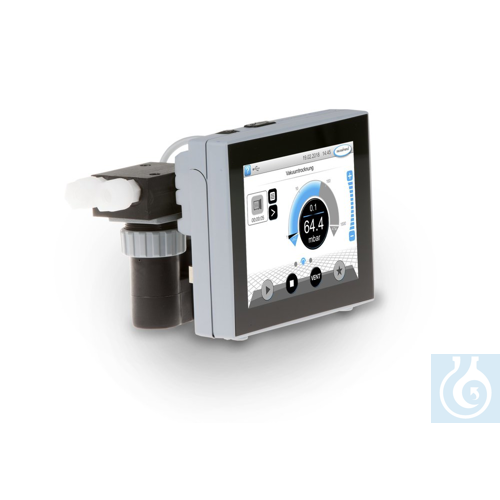

VACUU·SELECT compact built-in

Catalog nr. 20700060

Available

Vacuubrand

Price:
Sale price€2.515,00
Ask quote for bulk order

Accessories 1

Description

VACUU·SELECT compact built-in controller is a compact controller supplied in built-in version for VACUU·LAN workstations. It incorporates a suction line valve and utilises PVDF/fluoroelastomer construction. The unit operates on 100-230 V / 50-60 Hz and is furnished with plugs for CEE/CH/UK/US/AUS/CN standards. This controller from manufacturer VACUUBRAND supports integration into laboratory vacuum networks at VACUU·LAN workplaces. Supplied as 1 pc, it has a net weight of 1.8 kg and a gross weight of 2.9 kg. The built-in design suits permanent mounting within vacuum systems used in research and laboratory environments. Originating from Germany, the device provides a compact solution for vacuum control tasks requiring chemical-resistant materials and multi-region power compatibility. Its configuration with the suction line valve enables direct connection in VACUU·LAN setups, facilitating organised vacuum distribution across workstations without extensive additional hardware.

This article is part of Shakers, rockers & rotators, in Stirring, shaking & mixing.

Key features

  • Pack size: 1 piece
  • Version: Built-in for VACUU·LAN workstations
  • Valve: Suction line valve
  • Material: s: PVDF/fluoroelastomer
  • Power supply: 100-230 V / 50-60 Hz
  • Plug types: CEE/CH/UK/US/AUS/CN
  • Manufacturer: VACUUBRAND
  • UNSPSC: 41104900
  • Voltage: 100-230 V, 50-60 Hz
  • Upper measuring limit in mbar/hPa: 1080 mbar
  • Upper measuring limit in torr: 810 torr
  • Lower measuring limit in mbar/hPa: 0.1
  • Lower measuring limit in torr: 0.1 torr
  • Upper control limit in mbar / hPa: 1080 mbar
  • Upper control limit in torr: 810 torr
  • Lower control limit in mbar / hPa: 1 mbar
  • Lower control limit in torr: 1 torr
  • Measurement principle: Ceramic diaphragm (alumina), capacitive, gas indep., absolute pressure
  • Accuracy of measurement: < +- 1 mbar/hPa/torr / +- 1 digit (after adjustment, constant temp.) mbar/hPa/torr
  • Vacuum sensor: VACUU·SELECT Sensor
  • Temperature coefficient: < 0.15 mbar/hPa/0.11 torr /K mbar/hPa/torr /K
  • Vacum connection: PTFE tubing connection 10/8 mm
  • Venting valve: Integrated, hose nozzle DN 4-5 mm
  • Lower ambient temperature (storage): -10 °C
  • Upper ambient temperature (storage): 60 °C
  • Lower ambient temperature (operation): 10 °C
  • Upper ambient temperature (operation): 40 °C
  • Max. media temperature for continuous operation: 40 °C
  • Max. media temperature short term: 80 °C
  • Material of outer housing: Robust plastic housing with good chemical resistance
  • Protection class IEC 60529: IP 40
  • Protection class UL50E: Type 1
  • Protection class front side IEC 60529: IP 41
  • Protection class UL50E front side: Type 2
  • Dimension L in mm: 152 mm
  • Dimension B in mm: 126 mm
  • Dimension H in mm: 108 mm
  • Weight: 1.3 kg
  • Max. current for VACUU BUS (24V DC): 4 A
  • Cable length connection in m: 2 m
  • Interface: Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required)
  • NRTL certification: Yes
  • ATEX conformity: II 3/- G Ex h IIC T4 Gc X Internal Atm. only
  • Items supplied: VACUU·SELECT complete controller build-in version, for VACUU·LAN work stations, with solenoid valve, non-return valve, integrated ceramic diaphragm vacuum sensor and venting valve. With power supply, ready to use, with manual.
  • Technical Information Sheet: PDF
