Description

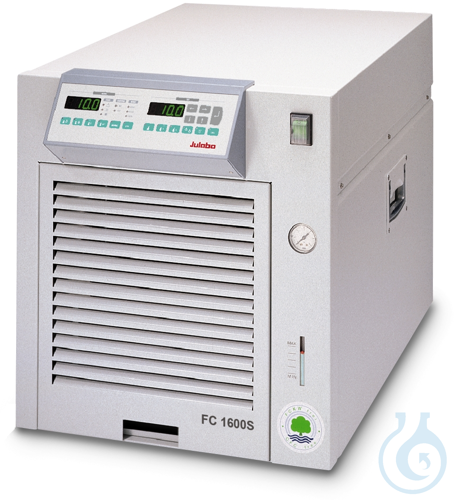

FC1600S chiller is a recirculating cooler with enhanced pump performance for applications involving larger fluid volumes. It covers a working temperature range from −15 °C to 80 °C and maintains temperature stability of ±0,2 °C for precise external tempering. Integrated heating of 1,2 kW extends the operating window beyond pure cooling duty. The stainless-steel bath and immersion pump support stable circulation; supply and return temperatures are adjustable in relation to each other (DBGM). Front filling with pump activation during fill, a front sight-glass level indicator, and a bright MULTI-DISPLAY (LED) simplify daily use. Membrane keypad operation is fast and secure. Protective functions comprise over-/undertemperature warnings with interval tone, freeze and dry-running protection, self-test, sensor and pump-motor monitoring, compressor protection, and all-pole shutdown with acoustic alarm. A removable ventilation grille aids cleaning, and RS232 allows PC connection. Scope of delivery includes hose olives for 8 and 12 mm i.d. hose (M16x1 external thread pump ports). Cooling performance is referenced to DIN 12876 at 20 °C ambient. Offered by manufacturer Julabo as 1 pc, the FC1600S suits volume-intensive laboratory and process cooling tasks.
This article is part of Circulators, chillers & thermostats, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Working temperature range: −15 °C to 80 °C
- Temperature stability: ±0,2 °C
- Bath vessel: Stainless steel
- Pump type: Immersion pump
- Heating capacity: 1,2 kW
Recently viewed
You may also like
Questions about FC1600S Recirculating cooler
What is this article?
FC1600S Recirculating cooler is the article on this page. Luminix Health distributes Julabo for laboratory use. It sits in Circulators, chillers & thermostats, inside Heating, drying & cooling, in Lab instruments.
A circulator or thermostat holds a bath liquid at a set temperature and pumps it through a jacket. A chiller is the same idea aimed below ambient. The temperature range, the cooling power and the pump flow are the three numbers. The fluid has to match the range.
Temperature equipment either holds a set point or drives a sample toward one. An oven dries. A furnace reaches the temperatures of ashing and melting. A bath surrounds a vessel with water or oil. A circulator moves that fluid. An incubator holds the mild warmth of a culture. An autoclave uses steam under pressure to sterilise. The number that matters is the temperature the article actually reaches, not the number painted on the dial. Temperature is part of the international system kept by the BIPM and compared by EURAMET.
