Description

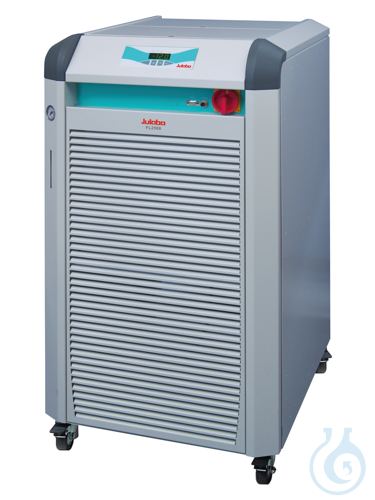

FL2506 upright recirculating cooler is a mid-range air-cooled recirculating cooler designed for higher cooling capacity with powerful circulation. The unit incorporates a durable immersion pump and an integrated stainless-steel bath vessel with filling volume up to 30 litres for continuous laboratory operation. Microprocessor PID temperature control delivers precise regulation, supported by a large bright LED temperature display and splash-proof membrane keypads for straightforward handling. Bath filling is simple via a hinged top opening, and low-level protection with optical and acoustic signals helps safeguard the system. Permissible return temperature reaches +80 °C. Practical features include a front drain cock, delivery-pressure display and RS232 interface for PC connection. Absence of side ventilation slots allows units to be placed directly beside one another. IP class according to IEC 60529 is 21; an alarm output offers a potential-free changeover contact (max. 30 VA). Scope of delivery includes two hose olives for 1'' internal-diameter hose (pump connections with G1 1/4 external thread). Cooling performance is stated per DIN 12876 at 20 °C ambient. This cooler from manufacturer Julabo ships as one piece with a net weight of 158 kg.
This article is part of Circulators, chillers & thermostats, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Bath vessel: Stainless steel
- Pump type: Immersion pump
- Filling volume: up to 30 l
- Permissible return temperature: +80 °C
- Pump connections: G1 1/4 external thread
Recently viewed
You may also like
Questions about FL2506 Recirculating cooler
What is this article?
FL2506 Recirculating cooler is the article on this page. Luminix Health distributes Julabo for laboratory use. It sits in Circulators, chillers & thermostats, inside Heating, drying & cooling, in Lab instruments.
A circulator or thermostat holds a bath liquid at a set temperature and pumps it through a jacket. A chiller is the same idea aimed below ambient. The temperature range, the cooling power and the pump flow are the three numbers. The fluid has to match the range.
Temperature equipment either holds a set point or drives a sample toward one. An oven dries. A furnace reaches the temperatures of ashing and melting. A bath surrounds a vessel with water or oil. A circulator moves that fluid. An incubator holds the mild warmth of a culture. An autoclave uses steam under pressure to sterilise. The number that matters is the temperature the article actually reaches, not the number painted on the dial. Temperature is part of the international system kept by the BIPM and compared by EURAMET.
