Description

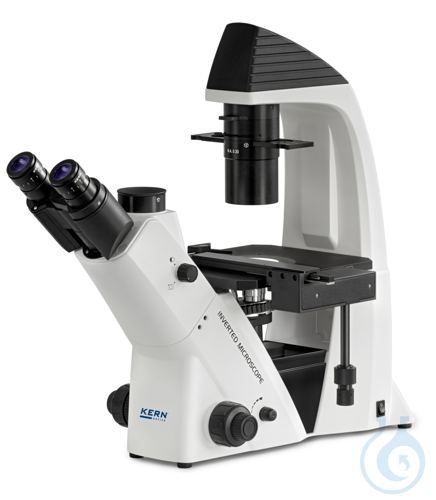

Inverted microscope KERN OCM 162 is an inverse laboratory microscope built for reliable observation and analysis of cell cultures. The OCM series features an ergonomic, robust and extra-stable design with a very large working distance, ideal for work with culture vessels. A 5 W LED illumination system provides optimal brightfield lighting of the specimen. A special Abbe N.A. 0,3 condenser with aperture diaphragm and a large working distance of 72 mm ensures effective performance in brightfield, phase contrast and fluorescence applications. The microscope is equipped as standard with a trinocular tube. Its mechanical stage, including an object holder (Ø 110 mm), supports fast and efficient specimen handling; further holders for culture dishes are included or available as accessories. Additional options such as a selection of eyepieces, objectives, object holders and further phase-contrast units can be integrated as accessories. Supplied as a complete unit from manufacturer Kern, this inverted microscope is suited to laboratory routines involving translucent and thin, low-contrast preparations in flasks, dishes and similar culture formats.
This article is part of Light & fluorescence microscopes, in Microscopy & histology.
Key features
- Pack size: 1 pc
- Illumination: 5 W LED
- Condenser: Abbe N.A. 0,3, 72 mm working distance
- Tube: Trinocular (standard)
- Stage: Mechanical with Ø 110 mm object holder
- EAN: 4045761489745
- Technical Information Sheet:
