Description

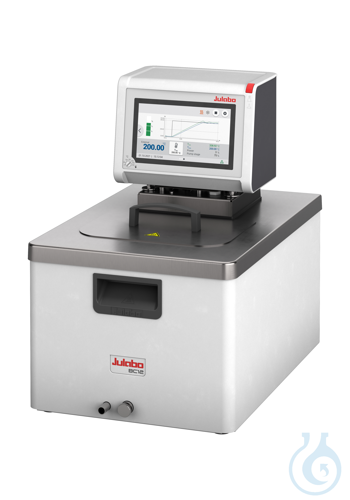

MAGIO MX-BC12 circulating thermostat is a premium heating thermostat engineered for precise internal and external tempering. As part of the MAGIO series from manufacturer Julabo, it combines high performance with straightforward control via a large, high-resolution TFT touch display and multilingual user interface. Strong pressure and suction pumps support demanding external loops, while the internal bath of the well-insulated, closed stainless-steel vessel allows sample tempering as well. Cooling coil and bath cover are integrated; the medium bath opening measures 22 x 15 cm with 20 cm depth. The stepless immersion pump provides 16 to 31 l/min flow, 0,24 to 0,92 bar delivery pressure and 0,03 to 0,4 bar suction pressure. All medium-wetted parts are stainless steel. Standard connectivity includes an integrated programmer, external Pt100 input, USB, RS232 and Ethernet, with optional analogue interfaces, Modbus and Profibus DP. Heating capacity is 3 kW. For setpoints near or below ambient, employ the cooling coil or a JULABO immersion cooler. Scope of supply covers two hose olives each for 8 and 12 mm i.d. hose on M16x1 pump connections.
This article is part of Circulators, chillers & thermostats, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Bath vessel: Stainless steel, closed, insulated
- Bath opening (W x D / depth): 22 x 15 / 20 cm
- Pump type: Immersion pressure/suction pump
- Flow rate: 16–31 l/min
- Delivery pressure: 0,24–0,92 bar
- Technical Information Sheet:
Recently viewed
You may also like
Questions about MAGIO MX-BC12 Heating circulator
What is this article?
MAGIO MX-BC12 Heating circulator is the article on this page. Luminix Health distributes Julabo for laboratory use. It sits in Circulators, chillers & thermostats, inside Heating, drying & cooling, in Lab instruments.
A circulator or thermostat holds a bath liquid at a set temperature and pumps it through a jacket. A chiller is the same idea aimed below ambient. The temperature range, the cooling power and the pump flow are the three numbers. The fluid has to match the range.
Temperature equipment either holds a set point or drives a sample toward one. An oven dries. A furnace reaches the temperatures of ashing and melting. A bath surrounds a vessel with water or oil. A circulator moves that fluid. An incubator holds the mild warmth of a culture. An autoclave uses steam under pressure to sterilise. The number that matters is the temperature the article actually reaches, not the number painted on the dial. Temperature is part of the international system kept by the BIPM and compared by EURAMET.
