Description

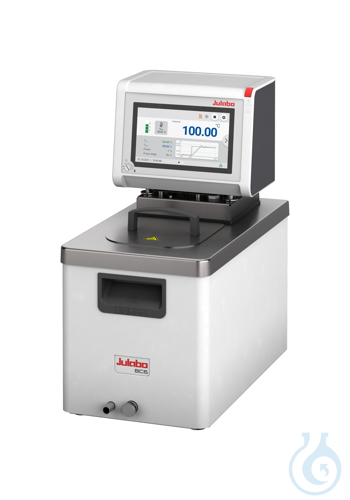

MAGIO MX-BC6 circulating thermostat is a premium heating thermostat for demanding internal and external temperature-control work. Belonging to the MAGIO range from manufacturer Julabo, it pairs strong performance with intuitive operation through a large, high-resolution TFT touch display and multilingual interface. Extra-powerful pressure and suction pumps meet high requirements for external applications, while samples can also be tempered in the internal bath of the high-quality insulated, closed stainless-steel vessel. An integrated cooling coil and bath cover are provided; the medium bath opening is 13 x 15 cm with 20 cm depth. The continuously adjustable immersion pump delivers 16 to 31 l/min at 0,24 to 0,92 bar delivery pressure and 0,03 to 0,4 bar suction pressure. Medium-contacting parts are stainless steel. On-board features include an integrated programmer, external Pt100 connection, USB, RS232 and Ethernet interfaces, with analogue interfaces and Profibus DP available as accessories. Heating power is 3 kW. Near or below ambient temperature, use the cooling coil or a JULABO immersion cooler. Delivery includes two hose olives each for 8 and 12 mm i.d. tubing (M16x1 pump connections).
This article is part of Circulators, chillers & thermostats, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Bath vessel: Stainless steel, closed, insulated
- Bath opening (W x D / depth): 13 x 15 / 20 cm
- Pump type: Immersion pressure/suction pump
- Flow rate: 16–31 l/min
- Delivery pressure: 0,24–0,92 bar
- Technical Information Sheet:
Recently viewed
You may also like
Questions about MAGIO MX-BC6 Heating circulator
What is this article?
MAGIO MX-BC6 Heating circulator is the article on this page. Luminix Health distributes Julabo for laboratory use. It sits in Circulators, chillers & thermostats, inside Heating, drying & cooling, in Lab instruments.
A circulator or thermostat holds a bath liquid at a set temperature and pumps it through a jacket. A chiller is the same idea aimed below ambient. The temperature range, the cooling power and the pump flow are the three numbers. The fluid has to match the range.
Temperature equipment either holds a set point or drives a sample toward one. An oven dries. A furnace reaches the temperatures of ashing and melting. A bath surrounds a vessel with water or oil. A circulator moves that fluid. An incubator holds the mild warmth of a culture. An autoclave uses steam under pressure to sterilise. The number that matters is the temperature the article actually reaches, not the number painted on the dial. Temperature is part of the international system kept by the BIPM and compared by EURAMET.
