Description

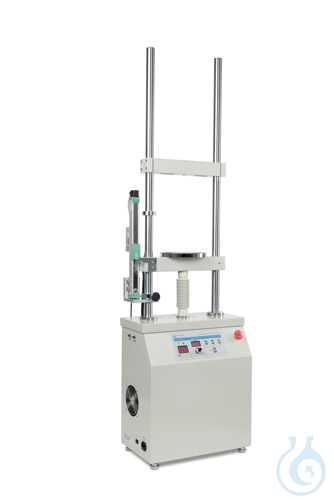

Force test stand TVS 20KN100-LD is a motorised dual-column premium system for tensile and compressive force measurements with a measuring range of 20 kN. The five-in-one configuration includes the motorised stand, LD length measuring system, interface cable, AFH LD data transfer software, AFH 12 interface converter and mounting assembly. Integrated linear potentiometry enables length measurement for PC-based force–displacement diagrams, with a maximum measuring range of 210 mm, 0,01 mm readability, 0,5 % of [Max] accuracy and a 1,5 m USB-A cable supporting high data acquisition rates. A stepper motor ensures constant speed from the smallest to maximum load, permits testing at minimal speed under full load, and offers high positioning accuracy with precise start and stop without overrun, even at elevated speeds; travel speed is displayed for exact setting. Electrical end switches protect the maximum travel path. Standard long guide columns provide a large working area and versatile fastening options for SAUTER FC, FH, FK and FL instruments, including direct crossbeam mounting of external load cells from 1000 N. Available as 1 pc from manufacturer Kern for professional force and displacement testing.
This article is part of Electronic pipettes, in Liquid handling.
Key features
- Pack size: 1 pc
- Measuring range: 20 kN
- Length measuring range: 210 mm
- Readability: 0,01 mm
- Measurement accuracy: 0,5 % of [Max]
- EAN: 4045761343634
- Technical Information Sheet:
