Description

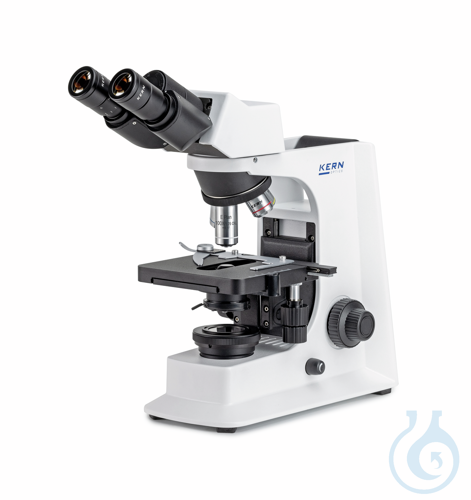

Transmitted light microscope KERN OBL 127 is a versatile laboratory instrument with infinity optics and fixed pre-centred Köhler illumination for demanding brightfield work. A robust, ergonomic stand supports safe, comfortable operation, while the strong, continuously dimmable 3 W LED provides bright, adjustable specimen lighting. The fixed pre-centred, focusable 1,25 Abbe condenser with aperture and field diaphragm simplifies Köhler setup without risk of decentring. A large mechanical stage with specimen holder accepts up to two slides and is focused quickly via bilateral coaxial coarse and fine drives. From manufacturer Kern, the OBL series is suited to haematology, urology, gynaecology, dermatology, pathology, microbiology and parasitology, immunology, oncology, entomology, veterinary work, water analysis and brewery applications, especially translucent, thin, low-contrast preparations such as living mammalian cells, bacteria and tissue. Wide accessory options include eyepieces, objectives, colour filters, darkfield condenser, simple polarisation, phase-contrast sets and HBO or LED fluorescence units. Dust cover, eyecups and a multilingual operating manual are included.
This article is part of Light & fluorescence microscopes, in Microscopy & histology.
Key features
- Pack size: 1 pc
- Optics: infinity optical system
- Illumination: 3 W LED, continuously dimmable
- Condenser: 1,25 Abbe, fixed pre-centred Köhler
- Stage: large mechanical stage, dual specimen holder
- EAN: 4045761267756
- Technical Information Sheet:
Recently viewed
You may also like
Questions about Transmitted Light Microscope KERN OBL, 127
What is this article?
Transmitted Light Microscope KERN OBL, 127 is the article on this page. Luminix Health distributes Kern for laboratory use. It sits in Light & fluorescence microscopes, inside Microscopy & histology, in Lab instruments.
A light microscope looks through a thin specimen. A fluorescence microscope adds a light source and filters matched to a dye, so only the labelled structure shows. The filter set has to match the dye's excitation and emission. A bright-field microscope without those filters cannot do that experiment.
A light microscope forms an image with glass lenses and transmitted or reflected light. A stereo microscope is the lower-magnification instrument for dissecting and for looking at a surface. Fluorescence needs a light source and filters matched to the dye. Histology is the preparation that makes a tissue readable: fixation, a cassette, a section, a stain. The objective's magnification and numerical aperture decide the resolution. The slide and the cover glass decide whether the section sits in the focal plane. Stains and dyes as substances are identified on PubChem. Papers on the methods are on PubMed.
