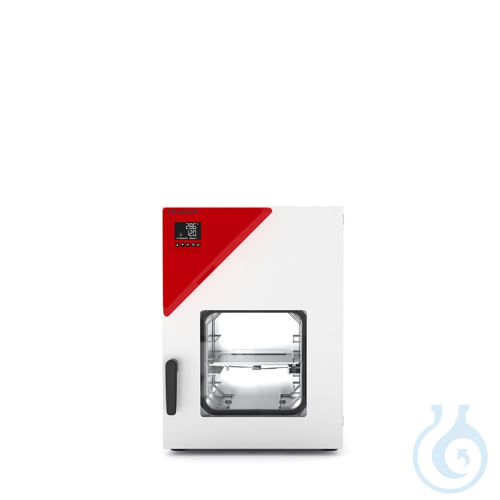

Vacuum drying chambers VD 23UL-120V

Catalog nr. 96300005

Available

Binder

Price:
Sale price€7.825,00
Ask quote for bulk order

Accessories 10

Vacuum pump VP1, Binder, art. 50130256Binder
Binder Vacuum pump VP1
Sale price€3.053,00
Vacuum pump VP2, Binder, art. 50130257Binder
Binder Vacuum pump VP2
Sale price€5.154,00
Qualification documents, Binder, art. 70070001Binder
Binder Qualification documents
Sale price€1.200,00
Qualification documents IQ/OQ/PQ extension for temperature, CO2, O2 or pressure, Binder, art. 70070005Binder
Binder Qualification documents
Sale price€1.816,00
Qualification documents, Binder, art. 70570001Binder
Binder Qualification documents
Sale price€1.056,00
Qualification documents IQ/OQ/PQ extension, Binder, art. 70570005Binder
Binder Qualification documents
Sale price€1.599,00
Expansion racksBinder
Binder Expansion racks
Sale price€428,00
Clamping inserts, stainless steel, Binder, art. 80122259Binder
Binder Expansion racks
Sale price€481,00

Description

The vacuum drying oven VD 23UL-120V is a laboratory vacuum drying cabinet engineered for gentle drying under tightly controlled temperature conditions. Maximum operating temperature reaches +220 °C, with a temperature range starting at +9 °C above ambient as described for the series, and a nominal volume of 114 l. The controller offers digital display of pressure and temperature, program-controlled drying monitoring with automatic ventilation at process end, and an internal data logger whose values can be read out in open format via USB. One aluminium expansion shelf is supplied and can be positioned individually; patented expansion-shelf technology supports efficient heat transfer and an easy-to-clean interior. Universal ventilation works with inert gas or ambient air, and a DN 16 feed-through accepts external measuring equipment. A spring-mounted safety glass pane with splinter protection and a large viewing window (optional interior lighting) complete the design. Ethernet provides the computer interface. This Binder VD-series model is configured for 120 V operation with United States plug (Type A/B). Pack size is 1 pc; net weight 71 kg and gross weight 73 kg.

This article is part of Muffle & tube furnaces, in Heating, drying & cooling.

Key features

  • Pack size: 1 pc
  • Nominal volume: 114 l
  • Maximum operating temperature: +220 °C
  • Controllable parameters: air pressure, vacuum
  • Program memory: yes
  • Interfaces: USB, Ethernet
  • Manufacturer: Binder
  • UNSPSC: 41104509
  • Interior dimensions: 285 × 295 × 285 mm (W × D × H)
  • Exterior dimensions: 523 × 413 × 698 mm (W × D × H)
  • Weight, empty: 64 kg
  • Voltage: 100...120 V, 50/60 Hz
  • Nominal power: 0.9 kW
  • Temperature range: +9 °C above ambient temperature to 220 °C
  • Temperature uniformity at 100 °C: ±1 K
  • Temperature fluctuation at 100 °C: ±0.1 K
  • Heating-up time to 100 °C: 80 min
  • Leak rate: 0.01 bar/h
  • Pressure fluctuation at 50 mbar: ±1 mbar
  • Pressure fluctuation at 400 mbar: ±70 mbar
  • Shelves, standard / maximum: 1/4
  • Load per rack: 20 kg
  • Permitted load: 50 kg
  • Energy consumption at 100 °C: 140 Wh/h
  • Wall clearance, side: 70 mm
  • Wall clearance, back: 100 mm
  • Vacuum connection: 16 DN mm
  • Measuring access port: 16 DN mm
  • Sound pressure level: 40 dB(A)
  • Technical Information Sheet: PDF
  • Data Sheet: PDF
