Description

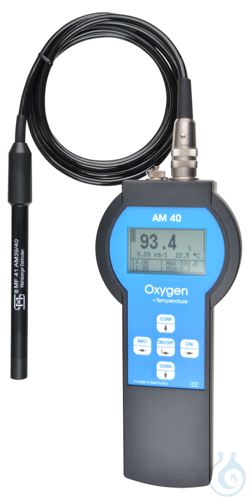

AM 40 handheld oxygen meter with backlit LCD display (128 × 64 pixels) is a portable instrument for dissolved-oxygen and oxygen-saturation measurements in laboratory and field applications. The graphical display and plain-text menu structure support clear operation via the housing keypad, while a USB interface enables configuration and data recording. An integrated data logger stores up to 4.000 data records for documentation and later evaluation. Measurement ranges cover 0…200 % and 0…20 mg/l, with temperature measurement and compensation from 0…100 °C. Power is supplied by three AA 1,5 V cells; the ambient operating range is −10…55 °C. The ABS housing is rated IP 65, with sensor connection BK and USB access via a 4-pole socket. Gross weight is 0,30 kg. This handheld meter from manufacturer Meinsberg – a Xylem brand is suited to routine oxygen monitoring, process checks and mobile analytical work where a compact, protected instrument with logging capability is required.
This article is part of Dissolved oxygen & multiparameter meters, in pH & electrochemistry.
Key features
- Pack size: 1 pc
- Product type: Handheld oxygen meter
- Display: LCD 128 x 64 pixels, backlit
- Measuring ranges: 0…200 %, 0…20 mg/l
- Temperature range: 0…100 °C (measurement and compensation)
- Data logger: 4.000 data records
Recently viewed
You may also like
Browse related categories
Category
Sub-category
Dissolved oxygen & multiparameter meters
Catalogue
Brand
Questions about AM 40
What is this article?
AM 40 is the article on this page. Luminix Health distributes Meinsberg - a Xylem brand for laboratory use. It sits in Dissolved oxygen & multiparameter meters, inside pH & electrochemistry, in Lab instruments.
A dissolved-oxygen meter reads oxygen in a liquid, optically or with a Clark cell. A multiparameter meter adds pH, conductivity or both on one instrument. The sensor cap or the membrane is the consumable. A reading in air and a reading in water are different calibrations.
A pH meter is a voltmeter on a glass electrode. The voltage tracks hydrogen-ion activity, and the electrode is converted to pH only after it is adjusted with buffers of known value. Conductivity measures how well a solution carries a current, which for dilute salts tracks concentration. Dissolved oxygen and titration are further electrodes on the same idea: a sensor, a standard, and a reading that is only as fresh as the calibration. Buffer values and chemical identity sit on PubChem. Accreditation of the calibration laboratory is the field of BELAC and EURAMET.
